PVC Fittings Online | SKU: AM1086H

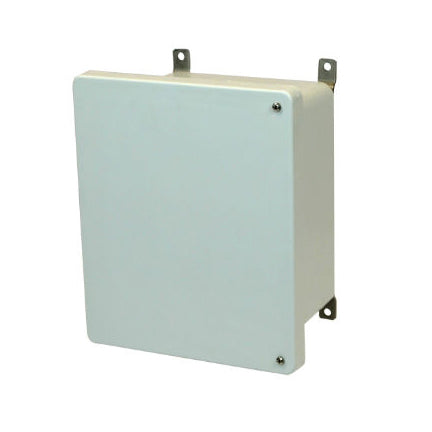

AM1086H 10x8x6 NEMA 4X Fiberglass Enclosure w/ Hinged Screw Cover

Name: AM1086H 10x8x6 NEMA 4X Fiberglass Enclosure w/ Hinged Screw Cover
Brand: PVC Fittings Online
SKU: AM1086H
Price: 126.35 USD
Availability: InStock

AM Series JIC Size Juncrion Box with Lift-Off Screw Cover and Window - Part: AM1086H

Allied Moulded enclosures have a 4-6 week lead time.

$126.35

Shipping calculated at checkout.

This is a Furniture Grade item - NOT MEANT FOR PLUMBING.

Actual part may differ slightly from image shown.

Description

Allied Moulded's fiberglass boxes are easy to customize, punch, drill, and saw. They are available in a variety of sizes and with different optional accessories to fit your unique enclosure needs. This product is part of Allied Moulded's AM series and features a lift-off screw cover. Allied electrical enclosures are easy to mount on a wall, machine, or even a pole.

Additional Info

Related Documents: Not Available

Part Number: AM1086H

Box Dimensions: 10.14" (H), 8.26" (W), 6.01" (D)

Cover Type: Opaque

Cover/Base Material: Ultraguard Fiberglass reinforced polyester (Color RAL 7035)

Latch Type: Screw Cover

Gasket Material: Closed Cell Neoprene

Back Panel Insert Material: Brass

Mounting Feet Material: Stainless Steel

Weight (lbs.): 6

UPC Code: 85339910879

Standards: UL 50 and UL 50E Types 1, 2, 3, 3R, 4, 4X, 12 and 13CSA C22.2 No. 94; Types 1, 2, 3, 3R, 4, 4X, 12, and 13

Compliance: EN / IEC 60204-1 and 60529 Type IP66, RoHS directive

Optional Accessories: Painted Steel Back Panel: P108 Aluminum Back Panel: PA108 Fiberglass Back Panel: PF108 Galvanized Back Panel: PG108 Key-lock Kit: AMKEYLOCKFCPole Mount Kit: AMPOLEMNT8

Fastener Material: 300 Series Stainless Steel
