PVC Fittings Online  |  SKU: AM1086HP12

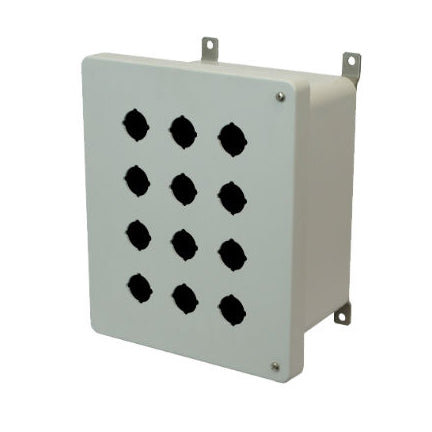

AM1086HP12 10x8x6 NEMA 4X Fiberglass Enclosure w/ Hinged Screw Cover 12 PB Cutouts 30.5MM

AM Series Pushbutton Enclosure with Multi-Hole Hinged Screw Cover - Part: AM1086HP12

Allied Moulded enclosures have a 4-6 week lead time.

$183.84
Shipping calculated at checkout.

This is a Furniture Grade item - NOT MEANT FOR PLUMBING.

Actual part may differ slightly from image shown.

Description
Allied Moulded's enclosures are tested regularly to ensure they meet strict UL and CSA specifications. Fiberglass electrical enclosures are not only easier to use and modify than metal enclosures, but they are also lighter, resist corrosion, and maintain seal integrity. This product is part of Allied Moulded's AM series and features a hinged screw cover. Also, it has a NEMA 4X rating for indoor and outdoor use.

Additional Info
Related Documents: Not Available
Part Number: AM1086HP12
Box Dimensions: 10.14" (H), 8.26" (W), 6.01" (D)
Cover Type: Pushbutton
Cover/Base Material: Ultraguard Fiberglass reinforced polyester (Color RAL 7035)
Latch Type: Screw Cover
Gasket Material: Closed Cell Neoprene
Back Panel Insert Material: Brass
Mounting Feet Material: Stainless Steel
Weight (lbs.): 6
UPC Code: 85339910992
Standards: UL 50 and UL 50E Types 1, 2, 3, 3R, 4, 4X, 12 and 13CSA C22.2 No. 94; Types 1, 2, 3, 3R, 4, 4X, 12, and 13
Compliance: EN / IEC 60204-1 and 60529 Type IP66, RoHS directive
Optional Accessories: Hole Plugs, Pole Mount Kit, Back Panels
Fastener Material: 300 Series Stainless Steel
