PVC Fittings Online  |  SKU: AM1086HP9

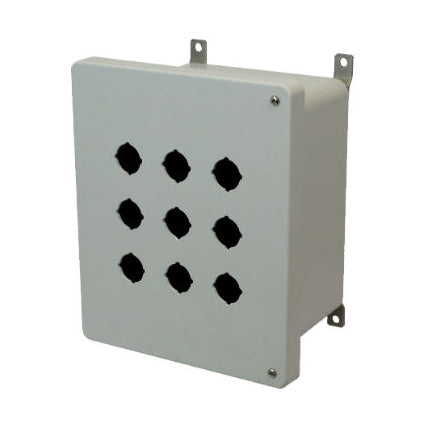

AM1086HP9 10x8x6 NEMA 4X Fiberglass Enclosure w/ Hinged Screw Cover 9 PB Cutouts 30.5MM

AM Series Pushbutton Enclosure with Multi-Hole Hinged Screw Cover - Part: AM1086HP9

Allied Moulded enclosures have a 4-6 week lead time.

$175.45
Shipping calculated at checkout.

This is a Furniture Grade item - NOT MEANT FOR PLUMBING.

Actual part may differ slightly from image shown.

Description
For a corrosion-resistant box that is affordable and made to last, trust Allied Moulded fiberglass enclosures. Fiberglass is much less expensive than heavy and difficult-to-use stainless steel enclosures. Allied Moulded's boxes are easy to customize, punch, drill, and saw. This product features a hinged screw cover and is part of Allied Moulded's AM series.

Additional Info
Related Documents: Not Available
Part Number: AM1086HP9
Box Dimensions: 10.14" (H), 8.26" (W), 6.01" (D)
Cover Type: Pushbutton
Cover/Base Material: Ultraguard Fiberglass reinforced polyester (Color RAL 7035)
Latch Type: Screw Cover
Gasket Material: Closed Cell Neoprene
Back Panel Insert Material: Brass
Mounting Feet Material: Stainless Steel
Weight (lbs.): 6
UPC Code: 85339910985
Standards: UL 50 and UL 50E Types 1, 2, 3, 3R, 4, 4X, 12 and 13CSA C22.2 No. 94; Types 1, 2, 3, 3R, 4, 4X, 12, and 13
Compliance: EN / IEC 60204-1 and 60529 Type IP66, RoHS directive
Optional Accessories: Hole Plugs, Pole Mount Kit, Back Panels
Fastener Material: 300 Series Stainless Steel
