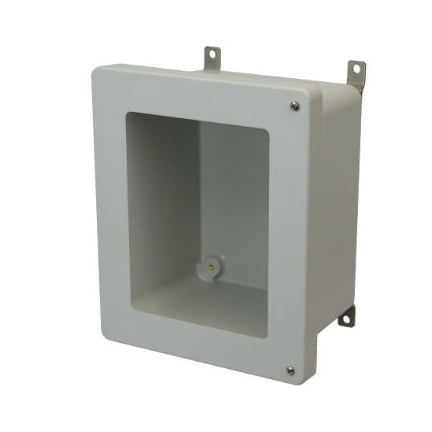

AM1086HW 10x8x6 NEMA 4X Fiberglass Enclosure w/ Hinged Screw Cover Window

Name: AM1086HW 10x8x6 NEMA 4X Fiberglass Enclosure w/ Hinged Screw Cover Window
Brand: PVC Fittings Online
SKU: AM1086HW
Price: 229.78 USD
Availability: InStock

AM Series JIC Size Junction Box with Hinged Screw Cover - Part: AM1086HW

Allied Moulded enclosures have a 4-6 week lead time.

$229.78

Shipping calculated at checkout.

This is a Furniture Grade item - NOT MEANT FOR PLUMBING.

Actual part may differ slightly from image shown.

Description

Allied Moulded's fiberglass electrical enclosure boxes are easily customizable and can be ordered with clear polycarbonate windows, pushbutton holes, and more. Other customizations are available upon request. This product is part of Allied Moulded's AM series and features a hinged screw cover. It comes standard in a light gray color, but other colors are available.

Additional Info

Related Documents: Not Available

Part Number: AM1086HW

Box Dimensions: 10.14" (H), 8.26" (W), 6.01" (D)

Cover Type: Window

Cover/Base Material: Ultraguard Fiberglass reinforced polyester (Color RAL 7035)

Latch Type: Screw Cover

Gasket Material: Closed Cell Neoprene

Back Panel Insert Material: Brass

Mounting Feet Material: Stainless Steel

Weight (lbs.): 6

UPC Code: 85339911067

Standards: UL 50 and UL 50E Types 1, 2, 3, 3R, 4, 4X, 12 and 13CSA C22.2 No. 94; Types 1, 2, 3, 3R, 4, 4X, 12, and 13

Compliance: EN / IEC 60204-1 and 60529 Type IP66, RoHS directive

Optional Accessories: Painted Steel Back Panel: P108 Aluminum Back Panel: PA108 Fiberglass Back Panel: PF108 Galvanized Back Panel: PG108 Key-lock Kit: AMKEYLOCKFCPole Mount Kit: AMPOLEMNT8

Fastener Material: 300 Series Stainless Steel
