PVC Fittings Online | SKU: AM1086LW

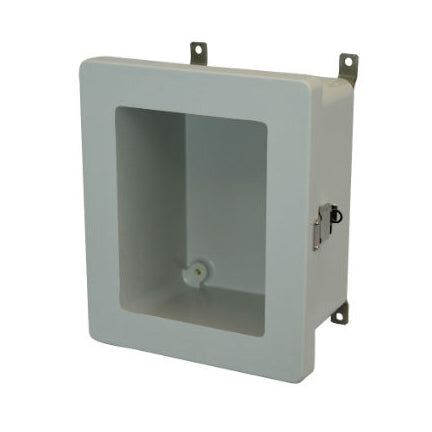

AM1086LW 10x8x6 NEMA 4X Fiberglass Enclosure w/ Quick-Release Latch Hinged Cover Window

Name: AM1086LW 10x8x6 NEMA 4X Fiberglass Enclosure w/ Quick-Release Latch Hinged Cover Window
Brand: PVC Fittings Online
SKU: AM1086LW
Price: 248.58 USD
Availability: InStock

AM Series JIC Size Junction Box with Snap Latch Hinged Cover and Window - Part: AM1086LW

Allied Moulded enclosures have a 4-6 week lead time.

$248.58

Shipping calculated at checkout.

This is a Furniture Grade item - NOT MEANT FOR PLUMBING.

Actual part may differ slightly from image shown.

Description

Allied Moulded's electrical enclosures are resistant to extreme temperatures and are designed with flame retardant properties. These boxes are also easy to mount on a wall, machine, or pole. Their fiberglass construction makes them much less expensive than heavy and hard-to-use stainless steel enclosures. This product features a snap latch hinged cover and is part of Allied Moulded's AM series.

Additional Info

Related Documents: Not Available

Part Number: AM1086LW

Box Dimensions: 10.14" (H), 8.26" (W), 6.01" (D)

Cover Type: Window

Cover/Base Material: Ultraguard Fiberglass reinforced polyester (Color RAL 7035)

Latch Type: Quick-Release Latch

Gasket Material: Closed Cell Neoprene

Back Panel Insert Material: Brass

Mounting Feet Material: Stainless Steel

Weight (lbs.): 6

UPC Code: 85339910930

Standards: UL 508A, UL 50 and UL 50E Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. E120175CSA-C22.2 No. 14 and CSA C22.2 No. 94 Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. 89590

Compliance: EN / IEC 60204-1 and 60529 Type IP66, RoHS directive

Optional Accessories: Painted Steel Back Panel: P108 Aluminum Back Panel: PA108 Fiberglass Back Panel: PF108 Galvanized Back Panel: PG108 Key-lock Kit: AMKEYLOCKFCPole Mount Kit: AMPOLEMNT8

Fastener Material: 300 Series Stainless Steel
