PVC Fittings Online | SKU: AM1086P9

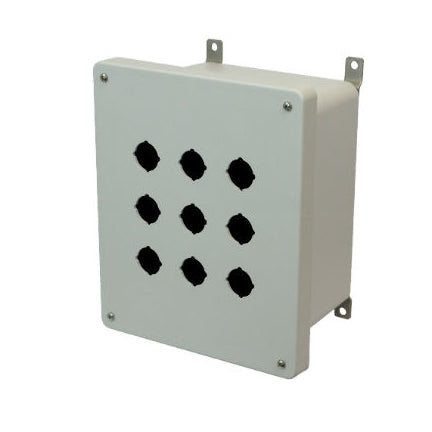

AM1086P9 10x8x6 NEMA 4X Fiberglass Enclosure w/ Lift-Off Screw Cover 9 PB Cutouts 30.5MM

Name: AM1086P9 10x8x6 NEMA 4X Fiberglass Enclosure w/ Lift-Off Screw Cover 9 PB Cutouts 30.5MM
Brand: PVC Fittings Online
SKU: AM1086P9
Price: 147.62 USD
Availability: InStock

AM Series Pushbutton Enclosure with Multi-Hole Screw Cover - Part: AM1086P9

Allied Moulded enclosures have a 4-6 week lead time.

$147.62

Shipping calculated at checkout.

This is a Furniture Grade item - NOT MEANT FOR PLUMBING.

Actual part may differ slightly from image shown.

Description

Every Allied Moulded enclosure is easy to mount on a wall, machine, or pole. Fiberglass electrical enclosures such as this one are not only easier to use and modify than metal enclosures, but they are also lighter, more corrosion-resistant, and maintain seal integrity better than their metal counterparts. This enclosure is part of Allied Moulded's AM series and features a screw cover.

Additional Info

Related Documents: Not Available

Part Number: AM1086P9

Box Dimensions: 10.14" (H), 8.26" (W), 6.01" (D)

Cover Type: Pushbutton

Cover/Base Material: Ultraguard Fiberglass reinforced polyester (Color RAL 7035)

Latch Type: Screw Cover

Gasket Material: Closed Cell Neoprene

Back Panel Insert Material: Brass

Mounting Feet Material: Stainless Steel

Weight (lbs.): 6

UPC Code: 85339910961

Standards: UL 508A, UL 50 and UL 50E Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. E120175CSA-C22.2 No. 14 and CSA C22.2 No. 94 Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. 89590

Compliance: EN / IEC 60204-1 and 60529 Type IP66, RoHS directive

Optional Accessories: Hole Plugs, Pole Mount Kit, Back Panels

Fastener Material: 300 Series Stainless Steel
