PVC Fittings Online | SKU: AM1086RH

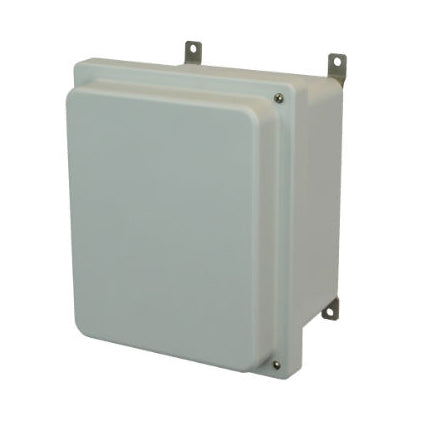

AM1086RH 10x8x6 NEMA 4X Fiberglass Enclosure w/ Raised Hinged Screw Cover

Name: AM1086RH 10x8x6 NEMA 4X Fiberglass Enclosure w/ Raised Hinged Screw Cover
Brand: PVC Fittings Online
SKU: AM1086RH
Price: 134.58 USD
Availability: InStock

AM-R Series JIC Size Junction Box with Hinged Screw Cover - Part: AM1086RH

Allied Moulded enclosures have a 4-6 week lead time.

$134.58

Shipping calculated at checkout.

This is a Furniture Grade item - NOT MEANT FOR PLUMBING.

Actual part may differ slightly from image shown.

Description

Allied Moulded uses Ultraguard reinforced fiberglass that is formulated to resist the effects of UV exposure, including discoloration and yellowing. It is also resistant to extreme temperatures and is designed with flame-retardant properties. This product features a hinged screw cover and is part of Allied Moulded's AM-R series. Trust Allied Moulded for a corrosion-resistant electrical enclosures that are affordable and made to last!

Additional Info

Related Documents: Not Available

Part Number: AM1086RH

Box Dimensions: 10.14" (H), 8.26" (W), 6.01" (D)

Cover Type: Opaque

Cover/Base Material: Ultraguard Fiberglass reinforced polyester (Color RAL 7035)

Latch Type: Screw Cover

Gasket Material: Closed Cell Neoprene

Back Panel Insert Material: Brass

Mounting Feet Material: Stainless Steel

Weight (lbs.): 7

UPC Code: 85339911296

Standards: UL 508A, UL 50 and UL 50E Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. E120175CSA-C22.2 No. 14 and CSA C22.2 No. 94 Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. 89590

Compliance: EN / IEC 60204-1 and 60529 Type IP66, RoHS directive

Optional Accessories: Painted Steel Back Panel: P108 Aluminum Back Panel: PA108 Fiberglass Back Panel: PF108 Galvanized Back Panel: PG108 Key-lock Kit: AMKEYLOCKFCPole Mount Kit: AMPOLEMNT8

Fastener Material: 300 Series Stainless Steel
