PVC Fittings Online | SKU: AM1086RHW

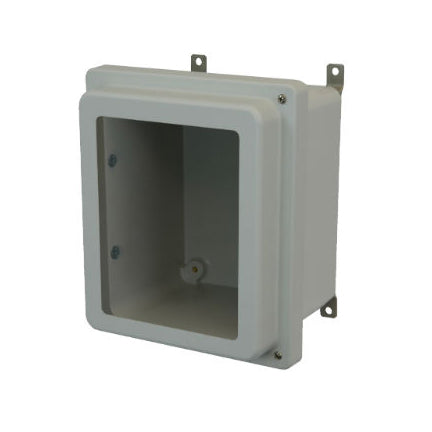

AM1086RHW 10x8x6 NEMA 4X Fiberglass Enclosure w/ Raised Hinged Screw Cover Window

Name: AM1086RHW 10x8x6 NEMA 4X Fiberglass Enclosure w/ Raised Hinged Screw Cover Window
Brand: PVC Fittings Online
SKU: AM1086RHW
Price: 240.23 USD
Availability: InStock

AM-R Series JIC Size Junction Boxes with Hinged Screw Cover and Window - Part: AM1086RHW

Allied Moulded enclosures have a 4-6 week lead time.

$240.23

Shipping calculated at checkout.

This is a Furniture Grade item - NOT MEANT FOR PLUMBING.

Actual part may differ slightly from image shown.

Description

This enclosure is a member of Allied Moulded's AM-R series and features a sturdy hinged screw cover. All Allied Moulded enclosures are resistant to extreme temperatures, the effects of UV exposure, discoloration, and yellowing. This product is made with Ultraguard reinforced fiberglass that is tough enough for the most demanding environments yet still inexpensive.

Additional Info

Related Documents: Not Available

Part Number: AM1086RHW

Box Dimensions: 10.14" (H), 8.26" (W), 6.01" (D)

Cover Type: Window

Cover/Base Material: Ultraguard Fiberglass reinforced polyester (Color RAL 7035)

Latch Type: Screw Cover

Gasket Material: Closed Cell Neoprene

Back Panel Insert Material: Brass

Mounting Feet Material: Stainless Steel

Weight (lbs.): 7

UPC Code: 85339911302

Standards: UL 508A, UL 50 and UL 50E Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. E120175 CSA-C22.2 No. 14 and CSA C22.2 No. 94 Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. 89590

Compliance: EN / IEC 60204-1 and 60529 Type IP66, RoHS directive

Optional Accessories: Painted Steel Back Panel: P108 Aluminum Back Panel: PA108 Fiberglass Back Panel: PF108 Galvanized Back Panel: PG108 Key-lock Kit: AMKEYLOCKFCPole Mount Kit: AMPOLEMNT8

Fastener Material: 300 Series Stainless Steel
