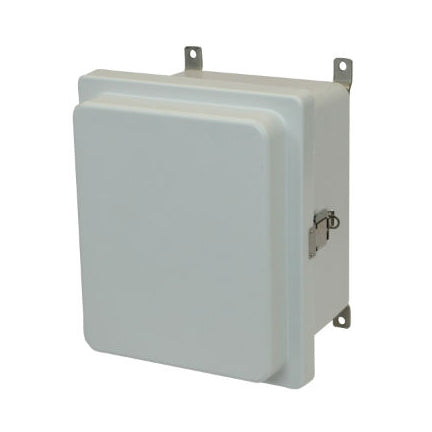

AM1086RL 10x8x6 NEMA 4X Fiberglass Enclosure w/ Raised Quick-Release Latch Hinged Cover
Allied Moulded's fiberglass boxes are easy to mount on a wall, machine, or pole. They are also easy to customize, punch, drill, and saw. This enclosure features a snap latch hinged cover and is part of Allied Moulded's AM-R series. Allied boxes can stand up to demanding environments such as chemical plants, oil refineries, and irrigation systems.
Additional Info
Related Documents: Not Available
Size in Inches: 10 inch
Part Number: AM1086RL
Box Dimensions: 10.14" (H), 8.26" (W), 6.01" (D)
Cover Type: Opaque
Cover/Base Material: Ultraguard Fiberglass reinforced polyester (Color RAL 7035)
Latch Type: Quick-Release Latch
Gasket Material: Closed Cell Neoprene
Back Panel Insert Material: Brass
Mounting Feet Material: Stainless Steel
Weight (lbs.): 7
UPC Code: 85339911029
Standards: UL 508A, UL 50 and UL 50E Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. E120175 CSA-C22.2 No. 14 and CSA C22.2 No. 94 Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. 89590
Compliance: EN / IEC 60204-1 and 60529 Type IP66, RoHS directive
Optional Accessories: Painted Steel Back Panel: P108 Aluminum Back Panel: PA108 Fiberglass Back Panel: PF108 Galvanized Back Panel: PG108 Key-lock Kit: AMKEYLOCKFC Pole Mount Kit: AMPOLEMNT8
Fastener Material: 300 Series Stainless Steel
PVC Fittings Online | SKU:
AM1086RL
AM1086RL 10x8x6 NEMA 4X Fiberglass Enclosure w/ Raised Quick-Release Latch Hinged Cover
AM-R Series JIC Size Junction Box with Snap Latch Hinged Cover - Part: AM1086RL
Allied Moulded enclosures have a 4-6 week lead time.
$166.38
Unit price
/
Unavailable
Shipping calculated at checkout.
AM1086RL 10x8x6 NEMA 4X Fiberglass Enclosure w/ Raised Quick-Release Latch Hinged Cover is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
AM-R Series JIC Size Junction Box with Snap Latch Hinged Cover - Part: AM1086RL
Allied Moulded enclosures have a 4-6 week lead time.
Description
Description
Allied Moulded's fiberglass boxes are easy to mount on a wall, machine, or pole. They are also easy to customize, punch, drill, and saw. This enclosure features a snap latch hinged cover and is part of Allied Moulded's AM-R series. Allied boxes can stand up to demanding environments such as chemical plants, oil refineries, and irrigation systems.
Additional Info
Additional Info
Related Documents: Not Available
Size in Inches: 10 inch
Part Number: AM1086RL
Box Dimensions: 10.14" (H), 8.26" (W), 6.01" (D)
Cover Type: Opaque
Cover/Base Material: Ultraguard Fiberglass reinforced polyester (Color RAL 7035)
Latch Type: Quick-Release Latch
Gasket Material: Closed Cell Neoprene
Back Panel Insert Material: Brass
Mounting Feet Material: Stainless Steel
Weight (lbs.): 7
UPC Code: 85339911029
Standards: UL 508A, UL 50 and UL 50E Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. E120175 CSA-C22.2 No. 14 and CSA C22.2 No. 94 Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. 89590
Compliance: EN / IEC 60204-1 and 60529 Type IP66, RoHS directive
Optional Accessories: Painted Steel Back Panel: P108 Aluminum Back Panel: PA108 Fiberglass Back Panel: PF108 Galvanized Back Panel: PG108 Key-lock Kit: AMKEYLOCKFC Pole Mount Kit: AMPOLEMNT8
Fastener Material: 300 Series Stainless Steel
