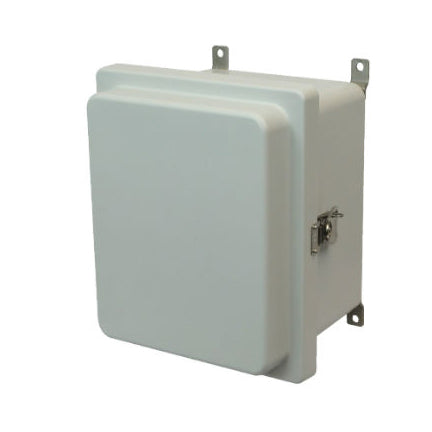

AM1086RT 10x8x6 NEMA 4X Fiberglass Enclosure w/ Raised Twist Latch Hinged Cover
Allied Moulded's Ultraguard reinforced fiberglass enclosures provide resistance to UV exposure, discoloration, and yellowing at a fraction of the cost of heavy and difficult-to-use stainless steel enclosures. This specific product is part of Allied Moulded's AM-R series and features a twist latch hinged cover. These enclosures are available with clear windows, pushbutton holes, and more. Call us for a full list of available customizations.
Additional Info
Related Documents: Not Available
Size in Inches: 10 inch
Part Number: AM1086RT
Box Dimensions: 10.14" (H), 8.26" (W), 6.01" (D)
Cover Type: Opaque
Cover/Base Material: Ultraguard Fiberglass reinforced polyester (Color RAL 7035)
Latch Type: Twist Latch
Gasket Material: Closed Cell Neoprene
Back Panel Insert Material: Brass
Mounting Feet Material: Stainless Steel
Weight (lbs.): 7
UPC Code: 85339911197
Standards: UL 508A, UL 50 and UL 50E Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. E120175 CSA-C22.2 No. 14 and CSA C22.2 No. 94 Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. 89590
Compliance: EN / IEC 60204-1 and 60529 Type IP66, RoHS directive
Optional Accessories: Painted Steel Back Panel: P108 Aluminum Back Panel: PA108 Fiberglass Back Panel: PF108 Galvanized Back Panel: PG108 Key-lock Kit: AMKEYLOCKFC Pole Mount Kit: AMPOLEMNT8
Fastener Material: 300 Series Stainless Steel
PVC Fittings Online | SKU:
AM1086RT
AM1086RT 10x8x6 NEMA 4X Fiberglass Enclosure w/ Raised Twist Latch Hinged Cover
AM-R Series JIC Size Junction Box with Twist Latch Hinged Cover - Part: AM1086RT
Allied Moulded enclosures have a 4-6 week lead time.
$166.38
Unit price
/
Unavailable
Shipping calculated at checkout.
AM1086RT 10x8x6 NEMA 4X Fiberglass Enclosure w/ Raised Twist Latch Hinged Cover is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
AM-R Series JIC Size Junction Box with Twist Latch Hinged Cover - Part: AM1086RT
Allied Moulded enclosures have a 4-6 week lead time.
Description
Description
Allied Moulded's Ultraguard reinforced fiberglass enclosures provide resistance to UV exposure, discoloration, and yellowing at a fraction of the cost of heavy and difficult-to-use stainless steel enclosures. This specific product is part of Allied Moulded's AM-R series and features a twist latch hinged cover. These enclosures are available with clear windows, pushbutton holes, and more. Call us for a full list of available customizations.
Additional Info
Additional Info
Related Documents: Not Available
Size in Inches: 10 inch
Part Number: AM1086RT
Box Dimensions: 10.14" (H), 8.26" (W), 6.01" (D)
Cover Type: Opaque
Cover/Base Material: Ultraguard Fiberglass reinforced polyester (Color RAL 7035)
Latch Type: Twist Latch
Gasket Material: Closed Cell Neoprene
Back Panel Insert Material: Brass
Mounting Feet Material: Stainless Steel
Weight (lbs.): 7
UPC Code: 85339911197
Standards: UL 508A, UL 50 and UL 50E Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. E120175 CSA-C22.2 No. 14 and CSA C22.2 No. 94 Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. 89590
Compliance: EN / IEC 60204-1 and 60529 Type IP66, RoHS directive
Optional Accessories: Painted Steel Back Panel: P108 Aluminum Back Panel: PA108 Fiberglass Back Panel: PF108 Galvanized Back Panel: PG108 Key-lock Kit: AMKEYLOCKFC Pole Mount Kit: AMPOLEMNT8
Fastener Material: 300 Series Stainless Steel
