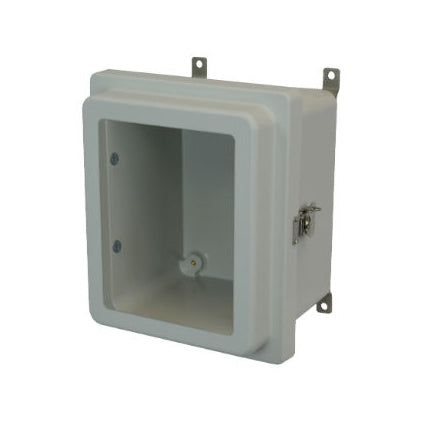

AM1086RTW 10x8x6 NEMA 4X Fiberglass Enclosure w/ Raised Twist Latch Hinged Cover Window

Name: AM1086RTW 10x8x6 NEMA 4X Fiberglass Enclosure w/ Raised Twist Latch Hinged Cover Window
Brand: PVC Fittings Online
SKU: AM1086RTW
Price: 266.68 USD
Availability: InStock

AM-R Series JIC Size Junction Box with Twist Latch Hinged Cover and Window - Part: AM1086RTW

Allied Moulded enclosures have a 4-6 week lead time.

$266.68

Shipping calculated at checkout.

This is a Furniture Grade item - NOT MEANT FOR PLUMBING.

Actual part may differ slightly from image shown.

Description

This electrical enclosure is able to protect your electrical equipment from salt, water, chemicals, and more. Allied Moulded's fiberglass boxes are easy to customize, punch, drill, and saw and are available in various sizes for your different enclosure needs. This product features a twist latch hinged cover and is part of Allied Moulded's AM-R series. Call us for a full list of customization options!

Additional Info

Related Documents: Not Available

Part Number: AM1086RTW

Box Dimensions: 10.14" (H), 8.26" (W), 6.01" (D)

Cover Type: Window

Cover/Base Material: Ultraguard Fiberglass reinforced polyester (Color RAL 7035)

Latch Type: Twist Latch

Gasket Material: Closed Cell Neoprene

Back Panel Insert Material: Brass

Mounting Feet Material: Stainless Steel

Weight (lbs.): 7

UPC Code: 85339911203

Standards: UL 508A, UL 50 and UL 50E Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. E120175 CSA-C22.2 No. 14 and CSA C22.2 No. 94 Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. 89590

Compliance: EN / IEC 60204-1 and 60529 Type IP66, RoHS directive

Optional Accessories: Painted Steel Back Panel: P108 Aluminum Back Panel: PA108 Fiberglass Back Panel: PF108 Galvanized Back Panel: PG108 Key-lock Kit: AMKEYLOCKFC Pole Mount Kit: AMPOLEMNT8

Fastener Material: 300 Series Stainless Steel
