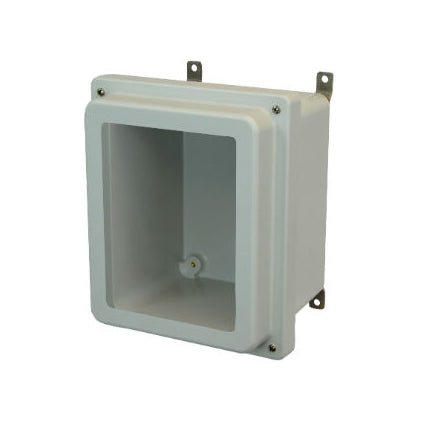

AM1086RW 10x8x6 NEMA 4X Fiberglass Enclosure w/ Raised Lift-Off Screw Cover Window

Name: AM1086RW 10x8x6 NEMA 4X Fiberglass Enclosure w/ Raised Lift-Off Screw Cover Window
Brand: PVC Fittings Online
SKU: AM1086RW
Price: 233.28 USD
Availability: InStock

AM-R Series JIC Size Junction Box with Lift-Off Screw Cover and Window - Part: AM1086RW

Allied Moulded enclosures have a 4-6 week lead time.

$233.28

Shipping calculated at checkout.

This is a Furniture Grade item - NOT MEANT FOR PLUMBING.

Actual part may differ slightly from image shown.

Description

All Allied Moulded enclosures are regularly tested to ensure they meet strict UL and CSA specifications. This product is part of Allied Moulded's AM-R series and features a lift-off screw cover. Our Ultraguard reinforced fiberglass enclosures are easy to customize, punch, drill, and saw. For corrosion-resistant electrical boxes that are affordable and built to last, trust Allied Moulded!

Additional Info

Related Documents: Not Available

Part Number: AM1086RW

Box Dimensions: 10.14" (H), 8.26" (W), 6.01" (D)

Cover Type: Window

Cover/Base Material: Ultraguard Fiberglass reinforced polyester (Color RAL 7035)

Latch Type: Screw Cover

Gasket Material: Closed Cell Neoprene

Back Panel Insert Material: Brass

Mounting Feet Material: Stainless Steel

Weight (lbs.): 7

UPC Code: 85339911289

Standards: UL 508A, UL 50 and UL 50E Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. E120175CSA-C22.2 No. 14 and CSA C22.2 No. 94 Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. 89590

Compliance: EN / IEC 60204-1 and 60529 Type IP66, RoHS directive

Optional Accessories: Painted Steel Back Panel: P108 Aluminum Back Panel: PA108 Fiberglass Back Panel: PF108 Galvanized Back Panel: PG108 Key-lock Kit: AMKEYLOCKFCPole Mount Kit: AMPOLEMNT8

Fastener Material: 300 Series Stainless Steel
