PVC Fittings Online | SKU: AM1086TW

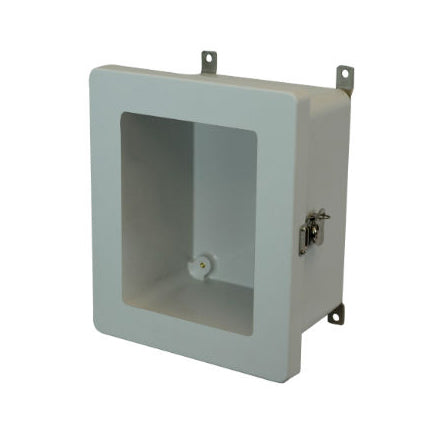

AM1086TW 10x8x6 NEMA 4X Fiberglass Enclosure w/ Twist Latch Hinged Cover Window

Name: AM1086TW 10x8x6 NEMA 4X Fiberglass Enclosure w/ Twist Latch Hinged Cover Window
Brand: PVC Fittings Online
SKU: AM1086TW
Price: 248.54 USD
Availability: InStock

AM Series JIC Size Junction Box with Twist Latch Hinged Cover and Window - Part: AM1086TW

Allied Moulded enclosures have a 4-6 week lead time.

$248.54

Shipping calculated at checkout.

This is a Furniture Grade item - NOT MEANT FOR PLUMBING.

Actual part may differ slightly from image shown.

Description

Allied Moulded has put years of time and research into developing the best reinforced fiberglass material available. Their fiberglass enclosures are a fraction of the cost of heavy and hard-to-use stainless steel enclosures. This box features a twist latch hinged cover and is part of the AM series of Allied Moulded electrical enclosures. For a corrosion-resistant box that is inexpensive and made to last, trust Allied Moulded enclosures!

Additional Info

Related Documents: Not Available

Part Number: AM1086TW

Box Dimensions: 10.14" (H), 8.26" (W), 6.01" (D)

Cover Type: Window

Cover/Base Material: Ultraguard Fiberglass reinforced polyester (Color RAL 7035)

Latch Type: Twist Latch

Gasket Material: Closed Cell Neoprene

Back Panel Insert Material: Brass

Mounting Feet Material: Stainless Steel

Weight (lbs.): 6

UPC Code: 85339910923

Standards: UL 508A, UL 50 and UL 50E Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. E120175 CSA-C22.2 No. 14 and CSA C22.2 No. 94 Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. 89590

Compliance: EN / IEC 60204-1 and 60529 Type IP66, RoHS directive

Optional Accessories: Painted Steel Back Panel: P108 Aluminum Back Panel: PA108 Fiberglass Back Panel: PF108 Galvanized Back Panel: PG108 Key-lock Kit: AMKEYLOCKFC Pole Mount Kit: AMPOLEMNT8

Fastener Material: 300 Series Stainless Steel
