PVC Fittings Online | SKU: AM1206H

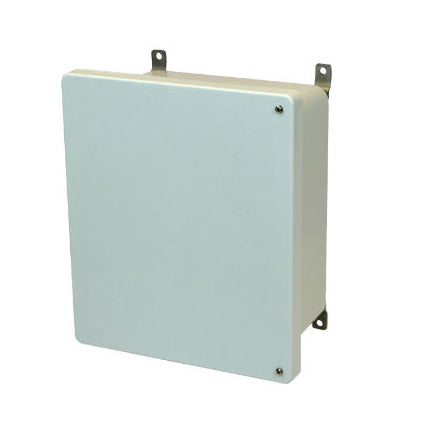

AM1206H 12x10x6 NEMA 4X Fiberglass Enclosure w/ Hinged Screw Cover

Name: AM1206H 12x10x6 NEMA 4X Fiberglass Enclosure w/ Hinged Screw Cover
Brand: PVC Fittings Online
SKU: AM1206H
Price: 152.34 USD
Availability: InStock

AM Series JIC Size Junction Box with Hinged Screw Cover - Part: AM1206H

Allied Moulded enclosures have a 4-6 week lead time.

$152.34

Shipping calculated at checkout.

This is a Furniture Grade item - NOT MEANT FOR PLUMBING.

Actual part may differ slightly from image shown.

Description

Allied Moulded electrical enclosures are able to protect your electrical equipment from salt, water, chemicals, snow, sleet, and more! They are also designed to resist extreme temperatures and have flame-retardant properties, making them the toughest boxes on the market. This product is part of Allied Moulded's AM series and features a hinged screw cover.

Additional Info

Related Documents: Not Available

Part Number: AM1206H

Box Dimensions: 12.14" (H), 10.26" (W), 6.01" (D)

Cover Type: Opaque

Cover/Base Material: Ultraguard Fiberglass reinforced polyester (Color RAL 7035)

Latch Type: Screw Cover

Gasket Material: Closed cell neoprene cord gasket

Back Panel Insert Material: Brass

Mounting Feet Material: Stainless Steel

Weight (lbs.): 8

UPC Code: 85339912071

Standards: UL 508A, UL 50 and UL 50E Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. E120175CSA-C22.2 No. 14 and CSA C22.2 No. 94 Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. 89590

Compliance: EN / IEC 60204-1 and 60529 Type IP66, RoHS directive

Optional Accessories: Painted Steel Back Panel: P120 Aluminum Back Panel: PA120 Fiberglass Back Panel: PF120 Galvanized Back Panel: PG120 Key-lock Kit: AMKEYLOCKFCPole Mount Kit: AMPOLEMNT10

Fastener Material: 300 Series stainless steel external hardware (hinges, latches and fasteners)
