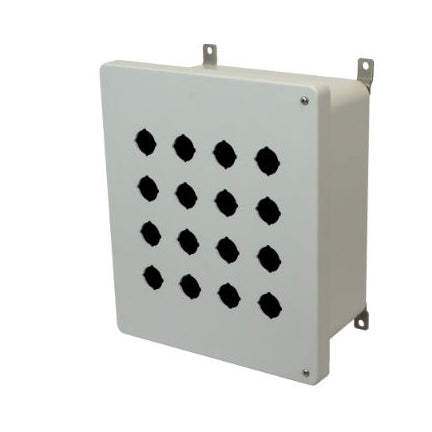

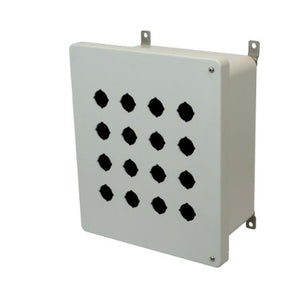

AM1206HP16 12x10x6 NEMA 4X Fiberglass Enclosure w/ Hinged Screw Cover 16 PB Cutouts 30.5MM

Name: AM1206HP16 12x10x6 NEMA 4X Fiberglass Enclosure w/ Hinged Screw Cover 16 PB Cutouts 30.5MM
Brand: PVC Fittings Online
SKU: AM1206HP16
Price: 199.14 USD
Availability: InStock

AM Series Pushbutton Enclosure with Multi-Hole Hinged Screw Cover - Part: AM1206HP16

Allied Moulded enclosures have a 4-6 week lead time.

$199.14

Shipping calculated at checkout.

This is a Furniture Grade item - NOT MEANT FOR PLUMBING.

Actual part may differ slightly from image shown.

Description

The unique Ultraguard reinforced fiberglass that Allied Moulded has taken over 50 years to perfect is rated for indoor and outdoor use and can protect your electrical equipment from salt, chemicals, water, and more. This product is part of Allied Moulded's AM series and features a hinged screw cover with 16 cutouts. This box comes standard in light gray, but is available in other colors as well - call for assistance.

Additional Info

Related Documents: Not Available

Part Number: AM1206HP16

Box Dimensions: 12.14" (H), 10.26" (W), 6.01" (D)

Cover Type: Pushbutton

Cover/Base Material: ULTRAGUARD Fiberglass reinforced polyester - compression molded SMC box and Cover

Latch Type: Screw Cover

Gasket Material: Closed cell neoprene cord gasket

Back Panel Insert Material: Brass

Mounting Feet Material: Stainless Steel

Weight (lbs.): 8

UPC Code: 85339912187

Standards: UL 508A, UL 50 and UL 50E Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. E120175CSA-C22.2 No. 14 and CSA C22.2 No. 94 Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. 89590

Compliance: EN / IEC 60204-1 and 60529 Type IP66, RoHS directive

Optional Accessories: Hole Plugs, Pole Mount Kit, Back Panels

Fastener Material: 300 Series stainless steel external hardware (hinges, latches and fasteners)
