PVC Fittings Online | SKU: AM1206HP20

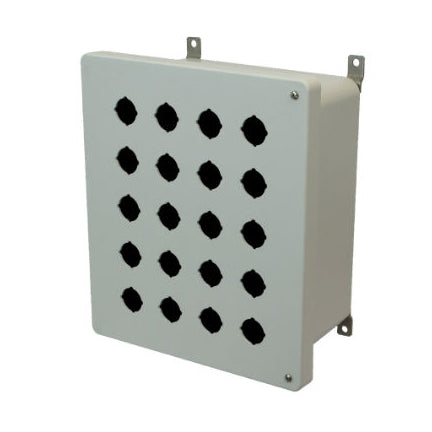

AM1206HP20 12x10x6 NEMA 4X Fiberglass Enclosure w/ Hinged Screw Cover 20 PB Cutouts 30.5MM

Name: AM1206HP20 12x10x6 NEMA 4X Fiberglass Enclosure w/ Hinged Screw Cover 20 PB Cutouts 30.5MM
Brand: PVC Fittings Online
SKU: AM1206HP20
Price: 207.51 USD
Availability: InStock

AM Series Pushbutton Enclosure with Multi-Hole Hinged Screw Cover - Part: AM1206HP20

Allied Moulded enclosures have a 4-6 week lead time.

$207.51

Shipping calculated at checkout.

This is a Furniture Grade item - NOT MEANT FOR PLUMBING.

Actual part may differ slightly from image shown.

Description

Protect your equipment from salt, water, chemicals, and more with an Allied Moulded electrical enclosure, which are all rated for indoor and outdoor use. This box features a hinged screw cover with 20 30.5mm holes and is part of Allied Moulded's AM series. For any customizations you have in mind that you don't see available, give us a call. We'd love to help!

Additional Info

Related Documents: Not Available

Part Number: AM1206HP20

Box Dimensions: 12.14" (H), 10.26" (W), 6.01" (D)

Cover Type: Pushbutton

Cover/Base Material: ULTRAGUARD Fiberglass reinforced polyester - compression molded SMC box and Cover

Latch Type: Screw Cover

Gasket Material: Closed cell neoprene cord gasket

Back Panel Insert Material: Brass

Mounting Feet Material: Stainless Steel

Weight (lbs.): 8

UPC Code: 85339912194

Standards: UL 508A, UL 50 and UL 50E Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. E120175CSA-C22.2 No. 14 and CSA C22.2 No. 94 Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. 89590

Compliance: EN / IEC 60204-1 and 60529 Type IP66, RoHS directive

Optional Accessories: Hole Plugs, Pole Mount Kit, Back Panels

Fastener Material: 300 Series stainless steel external hardware (hinges, latches and fasteners)
