PVC Fittings Online | SKU: AM1206HW

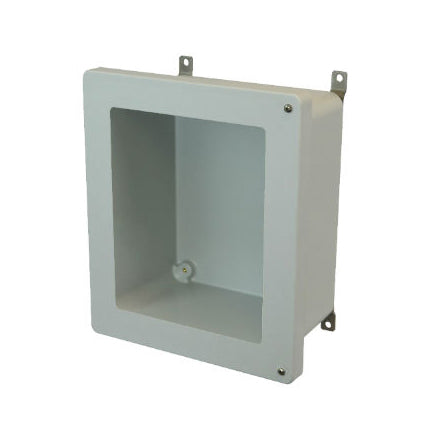

AM1206HW 12x10x6 NEMA 4X Fiberglass Enclosure w/ Hinged Screw Cover Window

Name: AM1206HW 12x10x6 NEMA 4X Fiberglass Enclosure w/ Hinged Screw Cover Window
Brand: PVC Fittings Online
SKU: AM1206HW
Price: 262.50 USD
Availability: InStock

AM Series JIC Size Junction Box with Hinged Screw Cover and Window - Part: AM1206HW

Allied Moulded enclosures have a 4-6 week lead time.

$262.50

Shipping calculated at checkout.

This is a Furniture Grade item - NOT MEANT FOR PLUMBING.

Actual part may differ slightly from image shown.

Description

Allied fiberglass enclosures are the toughest in the business and can hold up in demanding environments like chemical plants, oil refineries, and irrigation systems. This product is part of Allied Moulded's AM series and features a hinged screw cover with a clear polycarbonate window. This box will protect your equipment from chemicals, water, salt, and more and is available in a variety of colors - call us for options!

Additional Info

Related Documents: Not Available

Part Number: AM1206HW

Box Dimensions: 12.14" (H), 10.26" (W), 6.01" (D)

Cover Type: Window

Cover/Base Material: ULTRAGUARD Fiberglass reinforced polyester - compression molded SMC box and cover with bonded clear polycarbonate window

Latch Type: Screw Cover

Gasket Material: Closed cell neoprene cord gasket

Back Panel Insert Material: Brass

Mounting Feet Material: Stainless Steel

Weight (lbs.): 8

UPC Code: 85339912279

Standards: UL 508A, UL 50 and UL 50E Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. E120175CSA-C22.2 No. 14 and CSA C22.2 No. 94 Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. 89590

Compliance: EN / IEC 60204-1 and 60529 Type IP66, RoHS directive

Optional Accessories: Painted Steel Back Panel: P120 Aluminum Back Panel: PA120 Fiberglass Back Panel: PF120 Galvanized Back Panel: PG120 Key-lock Kit: AMKEYLOCKFCPole Mount Kit: AMPOLEMNT10

Fastener Material: 300 Series stainless steel external hardware (hinges, latches and fasteners)
