PVC Fittings Online  |  SKU: AM1206LW

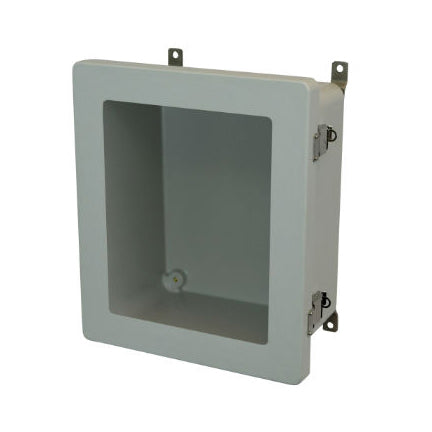

AM1206LW 12x10x6 NEMA 4X Fiberglass Enclosure w/ Quick-Release Latch Hinged Cover Window

AM Series JIC Size Junction Box with Snap Latch Hinged Cover and Window - Part: AM1206LW

Allied Moulded enclosures have a 4-6 week lead time.

$279.91
Shipping calculated at checkout.

This is a Furniture Grade item - NOT MEANT FOR PLUMBING.

Actual part may differ slightly from image shown.

Description
This enclosure is corrosion-resistant and made to last, made from Ultraguard fiberglass reinforced polyester. It is strong enough to protect your electrical equipment from water, salt, chemicals, and more! This product is part of Allied Moulded's AM series and features a snap latch hinged cover wit ha bonded clear polycarbonate window. All Allied enclosures are rated for indoor and outdoor use.

Additional Info
Related Documents: Not Available
Part Number: AM1206LW
Box Dimensions: 12.14" (H), 10.26" (W), 6.01" (D)
Cover Type: Window
Cover/Base Material: ULTRAGUARD Fiberglass reinforced polyester - compression molded SMC box and cover with bonded clear polycarbonate window
Latch Type: Quick-Release Latch
Gasket Material: Closed cell neoprene cord gasket
Back Panel Insert Material: Brass
Mounting Feet Material: Stainless Steel
Weight (lbs.): 8
UPC Code: 85339912132
Standards: UL 508A, UL 50 and UL 50E Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. E120175 CSA-C22.2 No. 14 and CSA C22.2 No. 94 Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. 89590
Compliance: EN / IEC 60204-1 and 60529 Type IP66, RoHS directive
Optional Accessories: Painted Steel Back Panel: P120 Aluminum Back Panel: PA120 Fiberglass Back Panel: PF120 Galvanized Back Panel: PG120 Key-lock Kit: AMKEYLOCKFC Pole Mount Kit: AMPOLEMNT10
Fastener Material: 300 Series stainless steel external hardware (hinges, latches and fasteners)
