PVC Fittings Online | SKU: AM1206P16

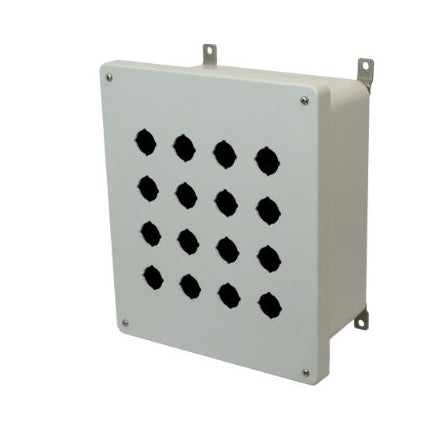

AM1206P16 12x10x6 NEMA 4X Fiberglass Enclosure w/ Lift-Off Screw Cover 16 PB Cutouts 30.5MM

Name: AM1206P16 12x10x6 NEMA 4X Fiberglass Enclosure w/ Lift-Off Screw Cover 16 PB Cutouts 30.5MM
Brand: PVC Fittings Online
SKU: AM1206P16
Price: 189.41 USD
Availability: InStock

AM Series Pushbutton Enclosure with Multi-Hole Lift-Off Screw Cover - Part: AM1206P16

Allied Moulded enclosures have a 4-6 week lead time.

$189.41

Shipping calculated at checkout.

This is a Furniture Grade item - NOT MEANT FOR PLUMBING.

Actual part may differ slightly from image shown.

Description

All Allied Moulded electrical enclosures are rated for both indoor and outdoor use. Our fiberglass boxes are endlessly customizable and are easy to punch, drill, and saw. This product features a lift-off screw cover with 16 30.5mm cutouts and is part of Allied Moulded's AM series.

Additional Info

Related Documents: Not Available

Part Number: AM1206P16

Box Dimensions: 12.14" (H), 10.26" (W), 6.01" (D)

Cover Type: Pushbutton

Cover/Base Material: ULTRAGUARD Fiberglass reinforced polyester - compression molded SMC box and Cover

Latch Type: Screw Cover

Gasket Material: Closed cell neoprene cord gasket

Back Panel Insert Material: Brass

Mounting Feet Material: Stainless Steel

Weight (lbs.): 8

UPC Code: 85339912163

Standards: UL 508A, UL 50 and UL 50E Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. E120175CSA-C22.2 No. 14 and CSA C22.2 No. 94 Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. 89590

Compliance: EN / IEC 60204-1 and 60529 Type IP66, RoHS directive

Optional Accessories: Hole Plugs, Pole Mount Kit, Back Panels

Fastener Material: 300 Series stainless steel external hardware (hinges, latches and fasteners)
