PVC Fittings Online | SKU: AM1206R

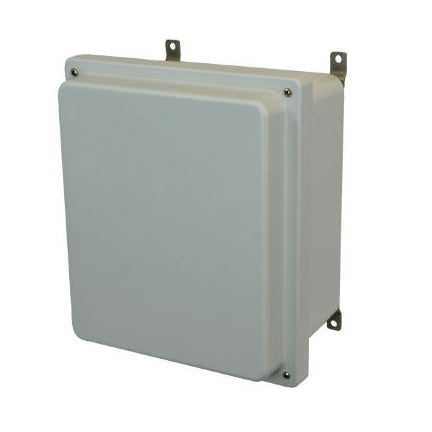

AM1206R 12x10x6 NEMA 4X Fiberglass Enclosure w/ Raised Lift-Off Screw Cover

Name: AM1206R 12x10x6 NEMA 4X Fiberglass Enclosure w/ Raised Lift-Off Screw Cover
Brand: PVC Fittings Online
SKU: AM1206R
Price: 150.26 USD
Availability: InStock

AM-R Series JIC Size Junction Box with Lift-Off Screw Cover - Part: AM1206R

Allied Moulded enclosures have a 4-6 week lead time.

$150.26

Shipping calculated at checkout.

This is a Furniture Grade item - NOT MEANT FOR PLUMBING.

Actual part may differ slightly from image shown.

Description

Allied Moulded has invested over 50 years of time and research into developing the best reinforced fiberglass material you can buy. Their enclosures are available with clear polycarbonate windows, pushbutton holes, and more. This product features a lift-off screw cover and is part of Allied Moulded's AM-R series. Trust Allied Moulded for dependable, corrosion-resistant boxes that are affordable and build to last.

Additional Info

Related Documents: Not Available

Part Number: AM1206R

Box Dimensions: 12.14" (H), 10.26" (W), 6.01" (D)

Cover Type: Opaque

Cover/Base Material: ULTRAGUARD Fiberglass reinforced polyester - compression molded SMC box and Cover

Latch Type: Screw Cover

Gasket Material: Closed cell neoprene cord gasket

Back Panel Insert Material: Brass

Mounting Feet Material: Stainless Steel

Weight (lbs.): 9

UPC Code: 85339912507

Standards: UL 508A, UL 50 and UL 50E Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. E120175CSA-C22.2 No. 14 and CSA C22.2 No. 94 Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. 89590

Compliance: EN / IEC 60204-1 and 60529 Type IP66, RoHS directive

Optional Accessories: Painted Steel Back Panel: P120 Aluminum Back Panel: PA120 Fiberglass Back Panel: PF120 Galvanized Back Panel: PG120 Aluminum HFP: HFP120 Key-lock Kit: AMKEYLOCKRCKey-lock Kit With HFP: AMKEYLOCKRCHFPPole Mount Kit: AMPOLEMNT10

Fastener Material: 300 Series stainless steel external hardware (hinges, latches and fasteners)
