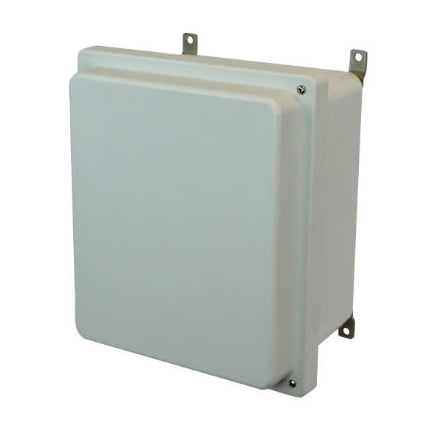

AM1206RH 12x10x6 NEMA 4X Fiberglass Enclosure w/ Raised Hinged Screw Cover

Name: AM1206RH 12x10x6 NEMA 4X Fiberglass Enclosure w/ Raised Hinged Screw Cover
Brand: PVC Fittings Online
SKU: AM1206RH
Price: 162.58 USD
Availability: InStock

AM-R Series JIC Size Junction Box with Hinged Screw Cover - Part: AM1206RH

Allied Moulded enclosures have a 4-6 week lead time.

$162.58

Shipping calculated at checkout.

This is a Furniture Grade item - NOT MEANT FOR PLUMBING.

Actual part may differ slightly from image shown.

Description

Allied electrical enclosures are easy to mount on a wall, machine, or pole and are tough enough to hold up in demanding environments like irrigation systems, oil refineries, and chemical plants. This box is part of Allied Moulded's AM-R series and features a hinged screw cover and stainless steel mounting feet. This box was designed specifically to house electrical equipment and meets all major industry standards.

Additional Info

Related Documents: Not Available

Part Number: AM1206RH

Box Dimensions: 12.14" (H), 10.26" (W), 6.01" (D)

Cover Type: Opaque

Cover/Base Material: ULTRAGUARD Fiberglass reinforced polyester - compression molded SMC box and Cover

Latch Type: Screw Cover

Gasket Material: Closed cell neoprene cord gasket

Back Panel Insert Material: Brass

Mounting Feet Material: Stainless Steel

Weight (lbs.): 9

UPC Code: 85339912521

Standards: UL 508A, UL 50 and UL 50E Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. E120175CSA-C22.2 No. 14 and CSA C22.2 No. 94 Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. 89590

Compliance: EN / IEC 60204-1 and 60529 Type IP66, RoHS directive

Optional Accessories: Painted Steel Back Panel: P120 Aluminum Back Panel: PA120 Fiberglass Back Panel: PF120 Galvanized Back Panel: PG120 Aluminum HFP: HFP120 Key-lock Kit: AMKEYLOCKRCKey-lock Kit With HFP: AMKEYLOCKRCHFPPole Mount Kit: AMPOLEMNT10

Fastener Material: 300 Series stainless steel external hardware (hinges, latches and fasteners)
