PVC Fittings Online  |  SKU: AM1206RHW

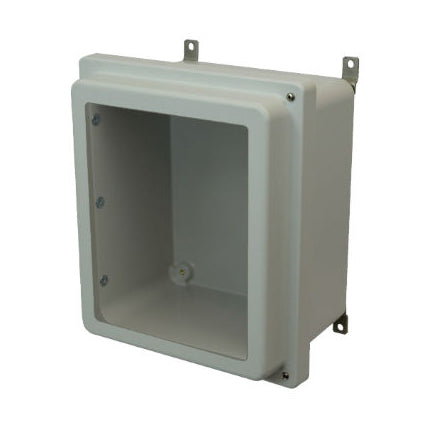

AM1206RHW 12x10x6 NEMA 4X Fiberglass Enclosure w/ Raised Hinged Screw Cover Window

AM-R Series JIC Size Junction Box with Hinged Screw Cover and Window - Part: AM1206RHW

Allied Moulded enclosures have a 4-6 week lead time.

$266.68
Shipping calculated at checkout.

This is a Furniture Grade item - NOT MEANT FOR PLUMBING.

Actual part may differ slightly from image shown.

Description
Allied Moulded uses Ultraguard reinforced fiberglass that is tough enough to stand up in the most demanding workplace environments. Allied boxes can easily be mounted on a wall, machine, or pole. This product is part of Allied Moulded's AM-R series and features a hinged screw cover with a bonded clear polycarbonate window. This box comes standard in a light gray color and is formulated to resist the effects of extended UV exposure, such as discoloration and yellowing.

Additional Info
Related Documents: Not Available
Part Number: AM1206RHW
Box Dimensions: 12.14" (H), 10.26" (W), 6.01" (D)
Cover Type: Window
Cover/Base Material: ULTRAGUARD Fiberglass reinforced polyester - compression molded SMC box and cover with bonded clear polycarbonate window
Latch Type: Screw Cover
Gasket Material: Closed cell neoprene cord gasket
Back Panel Insert Material: Brass
Mounting Feet Material: Stainless Steel
Weight (lbs.): 9
UPC Code: 85339912538
Standards: UL 508A, UL 50 and UL 50E Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. E120175CSA-C22.2 No. 14 and CSA C22.2 No. 94 Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. 89590
Compliance: EN / IEC 60204-1 and 60529 Type IP66, RoHS directive
Optional Accessories: Painted Steel Back Panel: P120 Aluminum Back Panel: PA120 Fiberglass Back Panel: PF120 Galvanized Back Panel: PG120 Aluminum HFP: HFP120 Key-lock Kit: AMKEYLOCKRCKey-lock Kit With HFP: AMKEYLOCKRCHFPPole Mount Kit: AMPOLEMNT10
Fastener Material: 300 Series stainless steel external hardware (hinges, latches and fasteners)
