PVC Fittings Online  |  SKU: AM1206RL

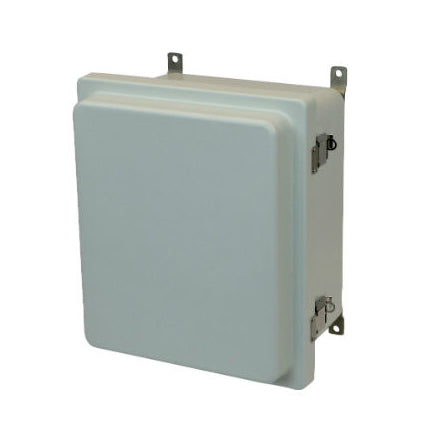

AM1206RL 12x10x6 NEMA 4X Fiberglass Enclosure w/ Raised Quick-Release Latch Hinged Cover

AM-R Series JIC Size Junction Box with Snap Latch Hinged Cover - Part: AM1206RL

Allied Moulded enclosures have a 4-6 week lead time.

$183.07
Shipping calculated at checkout.

This is a Furniture Grade item - NOT MEANT FOR PLUMBING.

Actual part may differ slightly from image shown.

Description
This product features a quick-release snap latch hinged cover for easy access to electrical equipment. It is a part of Allied Moulded's AM-R series of electrical enclosures. All Allied enclosures are regularly tested to ensure they comply with strict UL and CSA specifications. The unique Ultraguard reinforced fiberglass is specially formulated to resist the effects of extended UV exposure, plus discoloration and yellowing.

Additional Info
Related Documents: Not Available
Part Number: AM1206RL
Box Dimensions: 12.14" (H), 10.26" (W), 6.01" (D)
Cover Type: Opaque
Cover/Base Material: ULTRAGUARD Fiberglass reinforced polyester - compression molded SMC box and Cover
Latch Type: Quick-Release Latch
Gasket Material: Closed cell neoprene cord gasket
Back Panel Insert Material: Brass
Mounting Feet Material: Stainless Steel
Weight (lbs.): 9
UPC Code: 85339912330
Standards: UL 508A, UL 50 and UL 50E Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. E120175 CSA-C22.2 No. 14 and CSA C22.2 No. 94 Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. 89590
Compliance: EN / IEC 60204-1 and 60529 Type IP66, RoHS directive
Optional Accessories: Painted Steel Back Panel: P120 Aluminum Back Panel: PA120 Fiberglass Back Panel: PF120 Galvanized Back Panel: PG120 Aluminum HFP: HFP120 Key-lock Kit: AMKEYLOCKRC Key-lock Kit With HFP: AMKEYLOCKRCHFP Pole Mount Kit: AMPOLEMNT10
Fastener Material: 300 Series stainless steel external hardware (hinges, latches and fasteners)
