PVC Fittings Online  |  SKU: AM1206RT

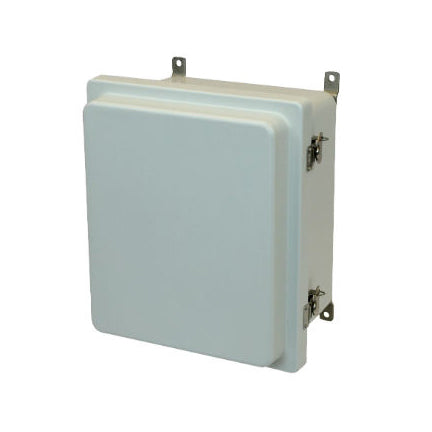

AM1206RT 12x10x6 NEMA 4X Fiberglass Enclosure w/ Raised Twist Latch Hinged Cover

AM-R Series JIC Size Junction Box with Twist Latch Hinged Cover - Part: AM1206RT

Allied Moulded enclosures have a 4-6 week lead time.

$183.07
Shipping calculated at checkout.

This is a Furniture Grade item - NOT MEANT FOR PLUMBING.

Actual part may differ slightly from image shown.

Description
All Allied electrical enclosures are corrosion-resistant, affordable, and made to last, as well as being rated for indoor and outdoor use. This particular box is part of Allied Moulded's AM-R series and features a twist latch hinged cover that will keep your equipment protected. This box is resistant to extreme temperature and has been designed with flame-retardant properties.

Additional Info
Related Documents: Not Available
Part Number: AM1206RT
Box Dimensions: 12.14" (H), 10.26" (W), 6.01" (D)
Cover Type: Opaque
Cover/Base Material: ULTRAGUARD Fiberglass reinforced polyester - compression molded SMC box and Cover
Latch Type: Twist Latch
Gasket Material: Closed cell neoprene cord gasket
Back Panel Insert Material: Brass
Mounting Feet Material: Stainless Steel
Weight (lbs.): 9
UPC Code: 85339912354
Standards: UL 508A, UL 50 and UL 50E Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. E120175 CSA-C22.2 No. 14 and CSA C22.2 No. 94 Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. 89590
Compliance: EN / IEC 60204-1 and 60529 Type IP66, RoHS directive
Optional Accessories: Painted Steel Back Panel: P120 Aluminum Back Panel: PA120 Fiberglass Back Panel: PF120 Galvanized Back Panel: PG120 Aluminum HFP: HFP120 Key-lock Kit: AMKEYLOCKRC Key-lock Kit With HFP: AMKEYLOCKRCHFP Pole Mount Kit: AMPOLEMNT10
Fastener Material: 300 Series stainless steel external hardware (hinges, latches and fasteners)
