PVC Fittings Online  |  SKU: AM1206RW

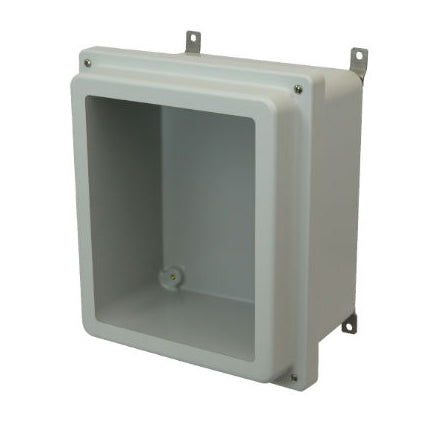

AM1206RW 12x10x6 NEMA 4X Fiberglass Enclosure w/ Raised Lift-Off Screw Cover Window

AM-R Series JIC Size Junction Box with Lift-Off Screw Cover and Window - Part: AM1206RW

Allied Moulded enclosures have a 4-6 week lead time.

$260.42
Shipping calculated at checkout.

This is a Furniture Grade item - NOT MEANT FOR PLUMBING.

Actual part may differ slightly from image shown.

Description
This enclosure's bonded clear polycarbonate window can protect your equipment from salt, water, chemicals, and more while still allowing you to see your equipment without having to open the box. This product features a lift-off screw cover and is part of Allied Moulded's AM-R series. All allied Moulded enclosures resist corrosion and are the most affordable on the market.

Additional Info
Related Documents: Not Available
Part Number: AM1206RW
Box Dimensions: 12.14" (H), 10.26" (W), 6.01" (D)
Cover Type: Window
Cover/Base Material: ULTRAGUARD Fiberglass reinforced polyester - compression molded SMC box and cover with bonded clear polycarbonate window
Latch Type: Screw Cover
Gasket Material: Closed cell neoprene cord gasket
Back Panel Insert Material: Brass
Mounting Feet Material: Stainless Steel
Weight (lbs.): 9
UPC Code: 85339912514
Standards: UL 508A, UL 50 and UL 50E Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. E120175CSA-C22.2 No. 14 and CSA C22.2 No. 94 Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. 89590
Compliance: EN / IEC 60204-1 and 60529 Type IP66, RoHS directive
Optional Accessories: Painted Steel Back Panel: P120 Aluminum Back Panel: PA120 Fiberglass Back Panel: PF120 Galvanized Back Panel: PG120 Aluminum HFP: HFP120 Key-lock Kit: AMKEYLOCKRCKey-lock Kit With HFP: AMKEYLOCKRCHFPPole Mount Kit: AMPOLEMNT10
Fastener Material: 300 Series stainless steel external hardware (hinges, latches and fasteners)
