PVC Fittings Online | SKU: AM1206T

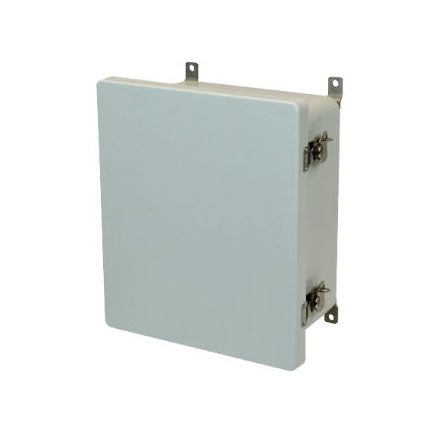

AM1206T 12x10x6 NEMA 4X Fiberglass Enclosure w/ Twist Latch Hinged Cover

Name: AM1206T 12x10x6 NEMA 4X Fiberglass Enclosure w/ Twist Latch Hinged Cover
Brand: PVC Fittings Online
SKU: AM1206T
Price: 171.45 USD
Availability: InStock

AM Series JIC Size Junction Box with Twist Latch Hinged Cover - Part: AM1206T

Allied Moulded enclosures have a 4-6 week lead time.

$171.45

Shipping calculated at checkout.

This is a Furniture Grade item - NOT MEANT FOR PLUMBING.

Actual part may differ slightly from image shown.

Description

Allied Moulded's fiberglass boxes an be customized and are easy to punch, drill, and saw however you need to. The Ultraguard formulation of fiberglass-reinforced polyester can stand up to the most challenging environments, such as chemical plants, oil refineries, and irrigation systems. This box features a twist latch hinged cover and is part of Allied Moulded's AM series.

Additional Info

Related Documents: Not Available

Part Number: AM1206T

Box Dimensions: 12.14" (H), 10.26" (W), 6.01" (D)

Cover Type: Opaque

Cover/Base Material: ULTRAGUARD Fiberglass reinforced polyester - compression molded SMC box and Cover

Latch Type: Twist Latch

Gasket Material: Closed cell neoprene cord gasket

Back Panel Insert Material: Brass

Mounting Feet Material: Stainless Steel

Weight (lbs.): 8

UPC Code: 85339912088

Standards: UL 508A, UL 50 and UL 50E Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. E120175 CSA-C22.2 No. 14 and CSA C22.2 No. 94 Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. 89590

Compliance: EN / IEC 60204-1 and 60529 Type IP66, RoHS directive

Optional Accessories: Painted Steel Back Panel: P120 Aluminum Back Panel: PA120 Fiberglass Back Panel: PF120 Galvanized Back Panel: PG120 Aluminum HFP: HFP120 Key-lock Kit: AMKEYLOCKRC Key-lock Kit With HFP: AMKEYLOCKRCHFP Pole Mount Kit: AMPOLEMNT10

Fastener Material: 300 Series stainless steel external hardware (hinges, latches and fasteners)
