PVC Fittings Online  |  SKU: AM1206TW

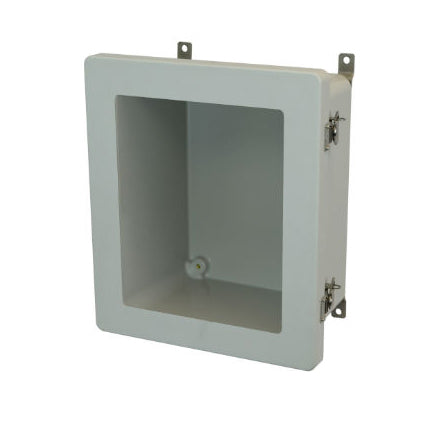

AM1206TW 12x10x6 NEMA 4X Fiberglass Enclosure w/ Twist Latch Hinged Cover Window

AM Series JIC Size Junction Box with Twist Latch Hinged Cover and Window - Part: AM1206TW

Allied Moulded enclosures have a 4-6 week lead time.

$279.91
Shipping calculated at checkout.

This is a Furniture Grade item - NOT MEANT FOR PLUMBING.

Actual part may differ slightly from image shown.

Description
This Allied enclosure will protect your electrical equipment from water, chemicals, salt damage, and more. It is also resistant to extreme temperatures and has been designed with flame-retardant properties. This product is part of Allied Moulded's AM series and features a twist latch hinged cover with a bonded clear polycarbonate window for easy viewing of contents.

Additional Info
Related Documents: Not Available
Part Number: AM1206TW
Box Dimensions: 12.14" (H), 10.26" (W), 6.01" (D)
Cover Type: Window
Cover/Base Material: ULTRAGUARD Fiberglass reinforced polyester - compression molded SMC box and cover with bonded clear polycarbonate window
Latch Type: Twist Latch
Gasket Material: Closed cell neoprene cord gasket
Back Panel Insert Material: Brass
Mounting Feet Material: Stainless Steel
Weight (lbs.): 8
UPC Code: 85339912125
Standards: UL 508A, UL 50 and UL 50E Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. E120175 CSA-C22.2 No. 14 and CSA C22.2 No. 94 Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. 89590
Compliance: EN / IEC 60204-1 and 60529 Type IP66, RoHS directive
Optional Accessories: Painted Steel Back Panel: P120 Aluminum Back Panel: PA120 Fiberglass Back Panel: PF120 Galvanized Back Panel: PG120 Aluminum HFP: HFP120 Key-lock Kit: AMKEYLOCKRC Key-lock Kit With HFP: AMKEYLOCKRCHFP Pole Mount Kit: AMPOLEMNT10
Fastener Material: 300 Series stainless steel external hardware (hinges, latches and fasteners)
