PVC Fittings Online | SKU: AM1426HW

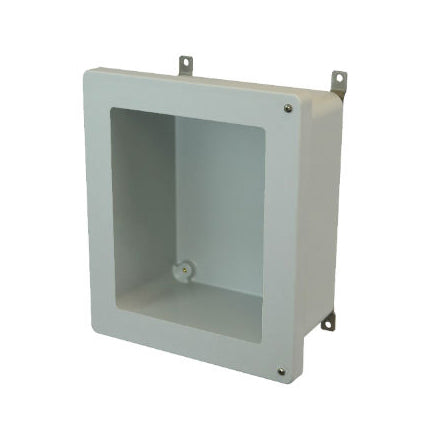

AM1426HW 14x12x6 NEMA 4X Fiberglass Enclosure w/ Hinged Screw Cover Window

Name: AM1426HW 14x12x6 NEMA 4X Fiberglass Enclosure w/ Hinged Screw Cover Window
Brand: PVC Fittings Online
SKU: AM1426HW
Price: 308.46 USD
Availability: InStock

AM Series JIC Size Junction Box with Hinged Screw Cover and Window - Part: AM1426HW

Allied Moulded enclosures have a 4-6 week lead time.

$308.46

Shipping calculated at checkout.

This is a Furniture Grade item - NOT MEANT FOR PLUMBING.

Actual part may differ slightly from image shown.

Description

Easily mounted on a wall, machine, and a pole this Allied enclosure protects against rain, sleet, snow, dirt, wind blown dust, hose directed water and corrosion. This product is especially well suited for extreme temperature and corrosive environments

Additional Info

Related Documents: Not Available

Part Number: AM1426HW

Box Dimensions: 14.14" (H), 12.26" (W), 6.01" (D)

Cover Type: Window

Cover/Base Material: ULTRAGUARD Fiberglass reinforced polyester - compression molded SMC box and cover with bonded clear polycarbonate window

Latch Type: Screw Cover

Gasket Material: Closed cell neoprene cord gasket

Back Panel Insert Material: Brass

Mounting Feet Material: Stainless Steel

Weight (lbs.): 12

UPC Code: 85339914440

Standards: UL 508A, UL 50 and UL 50E Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. E120175CSA-C22.2 No. 14 and CSA C22.2 No. 94 Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. 89590

Compliance: EN / IEC 60204-1 and 60529 Type IP66, RoHS directive

Optional Accessories: Painted Steel Back Panel: P142Aluminum Back Panel: PA142Fiberglass Back Panel: PF142Galvanized Back Panel: PG142Key-lock Kit With HFP: AMKEYLOCKKFCPole Mount Kit: AMPOLEMNT12

Fastener Material: 300 Series stainless steel external hardware (hinges, latches and fasteners)
