PVC Fittings Online  |  SKU: AM1426LW

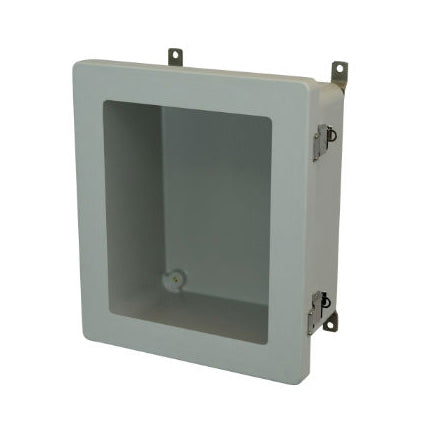

AM1426LW 14x12x6 NEMA 4X Fiberglass Enclosure w/ Quick-Release Latch Hinged Cover Window

AM Series JIC Size Junction Box with Snap Latch Hinged Cover and Window - Part: AM1426LW

Allied Moulded enclosures have a 4-6 week lead time.

$337.72
Shipping calculated at checkout.

This is a Furniture Grade item - NOT MEANT FOR PLUMBING.

Actual part may differ slightly from image shown.

Description
Extremely durable for long-term use this Allied Junction box is part of the AM series has a snap latch hinged cover and window. It is UV exposure resistant and great for indoor and outdoor use.

Additional Info
Related Documents: Not Available
Part Number: AM1426LW
Box Dimensions: 14.14" (H), 12.26" (W), 6.01" (D)
Cover Type: Window
Cover/Base Material: ULTRAGUARD Fiberglass reinforced polyester - compression molded SMC box and cover with bonded clear polycarbonate window
Latch Type: Quick-Release Latch
Gasket Material: Closed cell neoprene cord gasket
Back Panel Insert Material: Brass
Mounting Feet Material: Stainless Steel
Weight (lbs.): 12
UPC Code: 85339914334
Standards: UL 508A, UL 50 and UL 50E Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. E120175 CSA-C22.2 No. 14 and CSA C22.2 No. 94 Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. 89590
Compliance: EN / IEC 60204-1 and 60529 Type IP66, RoHS directive
Optional Accessories: Painted Steel Back Panel: P142 Aluminum Back Panel: PA142 Fiberglass Back Panel: PF142 Galvanized Back Panel: PG142 Key-lock Kit With HFP: AMKEYLOCKKFC Pole Mount Kit: AMPOLEMNT12
Fastener Material: 300 Series stainless steel external hardware (hinges, latches and fasteners)
