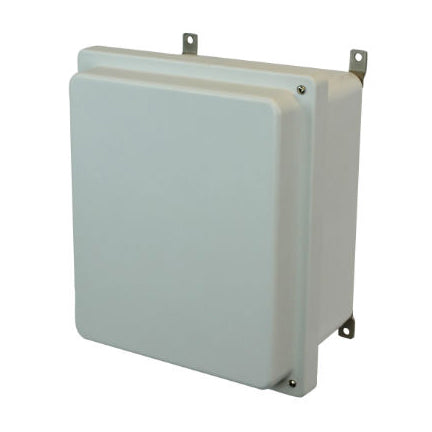

AM1426RH 14x12x6 NEMA 4X Fiberglass Enclosure w/ Raised Hinged Screw Cover

Name: AM1426RH 14x12x6 NEMA 4X Fiberglass Enclosure w/ Raised Hinged Screw Cover
Brand: PVC Fittings Online
SKU: AM1426RH
Price: 183.07 USD
Availability: InStock

AM-R Series JIC Size Junction Box with Hinged Screw Cover - Part: AM1426RH

Allied Moulded enclosures have a 4-6 week lead time.

$183.07

Shipping calculated at checkout.

This is a Furniture Grade item - NOT MEANT FOR PLUMBING.

Actual part may differ slightly from image shown.

Description

Allied Moulded offers enclosures that are formulated of fiberglass reinforced polyester and this AM-R series has compression molded SMC box and cover. Its great for indoor and outdoor use, and is UV exposure resistant.

Additional Info

Related Documents: Not Available

Part Number: AM1426RH

Box Dimensions: 14.14" (H), 12.26" (W), 6.01" (D)

Cover Type: Opaque

Cover/Base Material: ULTRAGUARD Fiberglass reinforced polyester - compression molded SMC box and Cover

Latch Type: Screw Cover

Gasket Material: Closed cell neoprene cord gasket

Back Panel Insert Material: Brass

Mounting Feet Material: Stainless Steel

Weight (lbs.): 12

UPC Code: 85339914570

Standards: UL 508A, UL 50 and UL 50E Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. E120175CSA-C22.2 No. 14 and CSA C22.2 No. 94 Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. 89590

Compliance: EN / IEC 60204-1 and 60529 Type IP66, RoHS directive

Optional Accessories: Painted Steel Back Panel: P142 Aluminum Back Panel: PA142 Fiberglass Back Panel: PF142 Galvanized Back Panel: PG142 Aluminum HFP: HFP142 Key-lock Kit: AMKEYLOCKRCKey-lock Kit With HFP: AMKEYLOCKRCHFPPole Mount Kit: AMPOLEMNT12

Fastener Material: 300 Series stainless steel external hardware (hinges, latches and fasteners)
