PVC Fittings Online  |  SKU: AM1426RW

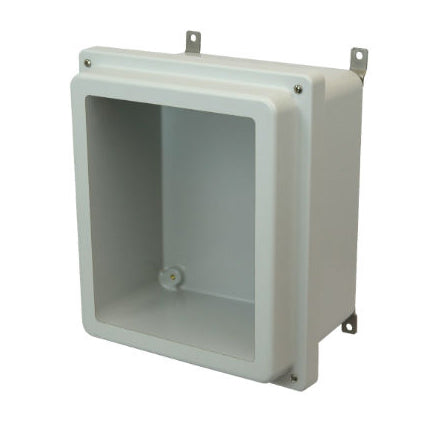

AM1426RW 14x12x6 NEMA 4X Fiberglass Enclosure w/ Raised Lift-Off Screw Cover Window

AM-R Series JIC Size Junction Box with Lift-Off Screw Cover and Window - Part: AM1426RW

Allied Moulded enclosures have a 4-6 week lead time.

$316.10
Shipping calculated at checkout.

This is a Furniture Grade item - NOT MEANT FOR PLUMBING.

Actual part may differ slightly from image shown.

Description
Using the best re-inforced fiberglass Allied Moulded has created products to last through extreme weather and harsh conditions This junction box with lift off screw cover and window was created to be easily mountable and to withstand various environments

Additional Info
Related Documents: Not Available
Part Number: AM1426RW
Box Dimensions: 14.14" (H), 12.26" (W), 6.01" (D)
Cover Type: Window
Cover/Base Material: ULTRAGUARD Fiberglass reinforced polyester - compression molded SMC box and cover with bonded clear polycarbonate window
Latch Type: Screw Cover
Gasket Material: Closed cell neoprene cord gasket
Back Panel Insert Material: Brass
Mounting Feet Material: Stainless Steel
Weight (lbs.): 12
UPC Code: 85339914563
Standards: UL 508A, UL 50 and UL 50E Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. E120175CSA-C22.2 No. 14 and CSA C22.2 No. 94 Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. 89590
Compliance: EN / IEC 60204-1 and 60529 Type IP66, RoHS directive
Optional Accessories: Painted Steel Back Panel: P142 Aluminum Back Panel: PA142 Fiberglass Back Panel: PF142 Galvanized Back Panel: PG142 Aluminum HFP: HFP142 Key-lock Kit: AMKEYLOCKRCKey-lock Kit With HFP: AMKEYLOCKRCHFPPole Mount Kit: AMPOLEMNT12
Fastener Material: 300 Series stainless steel external hardware (hinges, latches and fasteners)
