PVC Fittings Online  |  SKU: AM1426TW

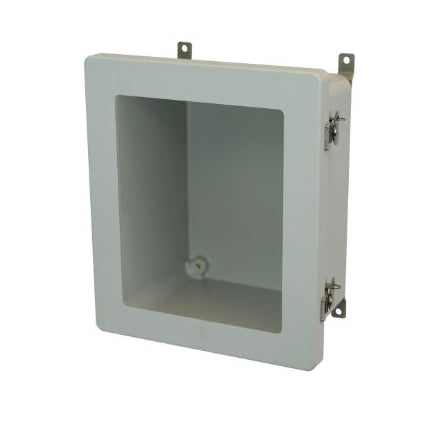

AM1426TW 14x12x6 NEMA 4X Fiberglass Enclosure w/ Twist Latch Hinged Cover Window

AM Series JIC Size Junction Box with Twist Latch Hinged Cover and Window - Part: AM1426TW

Allied Moulded enclosures have a 4-6 week lead time.

$337.72
Shipping calculated at checkout.

This is a Furniture Grade item - NOT MEANT FOR PLUMBING.

Actual part may differ slightly from image shown.

Description
This Allied enclosure is great for high temperatures as well as corrosive applications. It is part of the AM-series with a twist latch hinge cover and window. Made very durable to enclose and protect electrical and electronic controls, instruments or components for indoor and outdoor applications

Additional Info
Related Documents: Not Available
Part Number: AM1426TW
Box Dimensions: 14.14" (H), 12.26" (W), 6.01" (D)
Cover Type: Window
Cover/Base Material: ULTRAGUARD Fiberglass reinforced polyester - compression molded SMC box and cover with bonded clear polycarbonate window
Latch Type: Twist Latch
Gasket Material: Closed cell neoprene cord gasket
Back Panel Insert Material: Brass
Mounting Feet Material: Stainless Steel
Weight (lbs.): 12
UPC Code: 85339914327
Standards: UL 508A, UL 50 and UL 50E Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. E120175 CSA-C22.2 No. 14 and CSA C22.2 No. 94 Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. 89590
Compliance: EN / IEC 60204-1 and 60529 Type IP66, RoHS directive
Optional Accessories: Painted Steel Back Panel: P142 Aluminum Back Panel: PA142 Fiberglass Back Panel: PF142 Galvanized Back Panel: PG142 Key-lock Kit: AMKEYLOCKFC Pole Mount Kit: AMPOLEMNT12
Fastener Material: 300 Series stainless steel external hardware (hinges, latches and fasteners)
