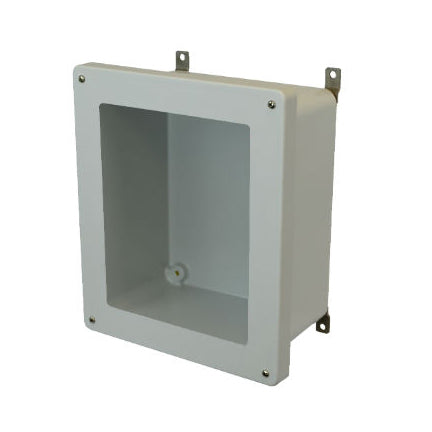

AM1426W 14x12x6 NEMA 4X Fiberglass Enclosure w/ Lift-Off Screw Cover Window

Name: AM1426W 14x12x6 NEMA 4X Fiberglass Enclosure w/ Lift-Off Screw Cover Window
Brand: PVC Fittings Online
SKU: AM1426W
Price: 305.67 USD
Availability: InStock

AM Series JIC Size Junction Box with Hinged Screw Cover and Window - Part: AM1426W

Allied Moulded enclosures have a 4-6 week lead time.

$305.67

Shipping calculated at checkout.

This is a Furniture Grade item - NOT MEANT FOR PLUMBING.

Actual part may differ slightly from image shown.

Description

This compression molded SMC box and cover with bonded clear polycarbonate window is formulated of fiberglass reinforced polyester. It protects against some of the most extreme weather conditions. It is especially well suited for extreme temperatures and corrosive environments

Additional Info

Related Documents: Not Available

Part Number: AM1426W

Box Dimensions: 14.14" (H), 12.26" (W), 6.01" (D)

Cover Type: Window

Cover/Base Material: ULTRAGUARD Fiberglass reinforced polyester - compression molded SMC box and cover with bonded clear polycarbonate window

Latch Type: Screw Cover

Gasket Material: Closed cell neoprene cord gasket

Back Panel Insert Material: Brass

Mounting Feet Material: Stainless Steel

Weight (lbs.): 12

UPC Code: 85339914433

Standards: UL 508A, UL 50 and UL 50E Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. E120175CSA-C22.2 No. 14 and CSA C22.2 No. 94 Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. 89590

Compliance: EN / IEC 60204-1 and 60529 Type IP66, RoHS directive

Optional Accessories: Painted Steel Back Panel: P142 Aluminum Back Panel: PA142 Fiberglass Back Panel: PF142 Galvanized Back Panel: PG142 Key-lock Kit: AMKEYLOCKFCPole Mount Kit: AMPOLEMNT12

Fastener Material: 300 Series stainless steel external hardware (hinges, latches and fasteners)
