PVC Fittings Online | SKU: AM1648HP30

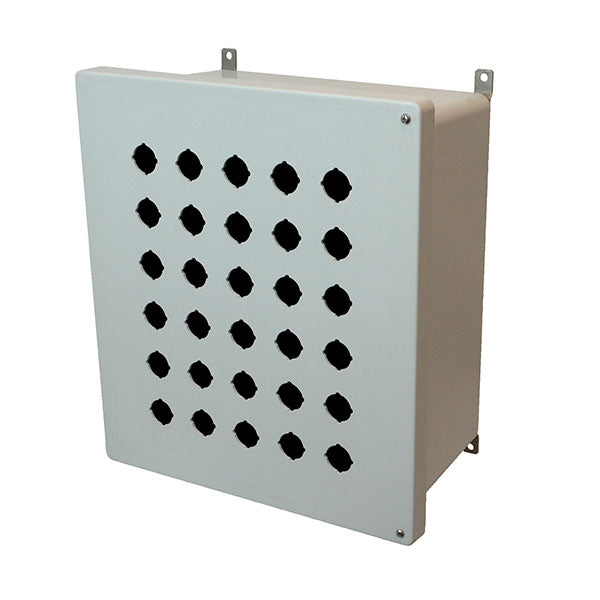

AM1648HP30 16x14x8 NEMA 4X Fiberglass Enclosure w/ Hinged Screw Cover 30 PB Cutouts 30.5MM

Name: AM1648HP30 16x14x8 NEMA 4X Fiberglass Enclosure w/ Hinged Screw Cover 30 PB Cutouts 30.5MM
Brand: PVC Fittings Online
SKU: AM1648HP30
Price: 259.00 USD
Availability: InStock

AM Series Pushbutton Enclosure with Multi-Hole Hinged Screw Cover - Part: AM1648HP30

Allied Moulded enclosures have a 4-6 week lead time.

$259.00

Shipping calculated at checkout.

This is a Furniture Grade item - NOT MEANT FOR PLUMBING.

Actual part may differ slightly from image shown.

Description

This AM Series Pushbutton Enclosure with Multi-Hole Hinged Screw Cover is easy to mount on a wall, pole or a machine. This enclosure protects against rain, sleet, snow, dirt, windblown dust, hose-directed water and corrosion. Great for indoor and outdoor use.

Additional Info

Related Documents: Not Available

Part Number: AM1648HP30

Box Dimensions: 16.27" (H), 14.4" (W), 8" (D)

Cover Type: Pushbutton

Cover/Base Material: ULTRAGUARD Fiberglass reinforced polyester - compression molded SMC box and Cover

Latch Type: Screw Cover

Gasket Material: Closed cell neoprene cord gasket

Back Panel Insert Material: Brass

Weight (lbs.): 13

UPC Code: 85339916598

Standards: UL 508A, UL 50 and UL 50E Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. E120175CSA-C22.2 No. 14 and CSA C22.2 No. 94 Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. 89590

Compliance: EN / IEC 60204-1 and 60529 Type IP66, RoHS directive

Optional Accessories: Hole Plugs, Pole Mount Kit, Back Panels

Fastener Material: 300 Series stainless steel external hardware (hinges, latches and fasteners)
