PVC Fittings Online | SKU: AM1648HW

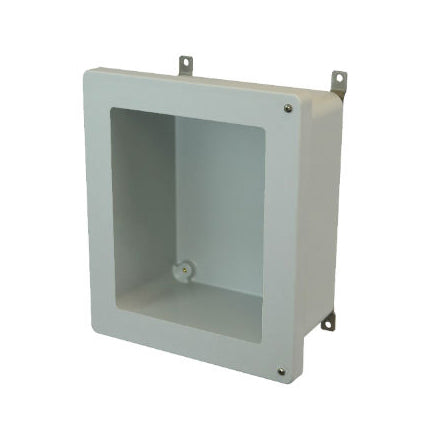

AM1648HW 16x14x8 NEMA 4X Fiberglass Enclosure w/ Hinged Screw Cover Window

Name: AM1648HW 16x14x8 NEMA 4X Fiberglass Enclosure w/ Hinged Screw Cover Window
Brand: PVC Fittings Online
SKU: AM1648HW
Price: 347.45 USD
Availability: InStock

AM Series JIC Size Junction Box with Hinged Screw Cover and Window - Part: AM1648HW

Allied Moulded enclosures have a 4-6 week lead time.

$347.45

Shipping calculated at checkout.

This is a Furniture Grade item - NOT MEANT FOR PLUMBING.

Actual part may differ slightly from image shown.

Description

Various shapes and sizes are available with this Allied fiberglass enclosure This product is great for indoor and outdoor use. Made super durable to withstand the most extreme temperatures Allied Moulded protects electrical and electronic controls, instruments or components

Additional Info

Related Documents: Not Available

Part Number: AM1648HW

Box Dimensions: 16.27" (H), 14.4" (W), 8" (D)

Cover Type: Window

Cover/Base Material: ULTRAGUARD Fiberglass reinforced polyester - compression molded SMC box and cover with bonded clear polycarbonate window

Latch Type: Screw Cover

Gasket Material: Closed cell neoprene cord gasket

Back Panel Insert Material: Brass

Mounting Feet Material: Stainless Steel

Weight (lbs.): 13

UPC Code: 85339916666

Standards: UL 508A, UL 50 and UL 50E Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. E120175CSA-C22.2 No. 14 and CSA C22.2 No. 94 Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. 89590

Compliance: EN / IEC 60204-1 and 60529 Type IP66, RoHS directive

Optional Accessories: Painted Steel Back Panel: P164 Aluminum Back Panel: PA164 Fiberglass Back Panel: PF164 Galvanized Back Panel: PG164 Key-lock Kit: AMKEYLOCKFCPole Mount Kit: AMPOLEMNT14

Fastener Material: 300 Series stainless steel external hardware (hinges, latches and fasteners)
