Actual part may differ slightly from image shown.

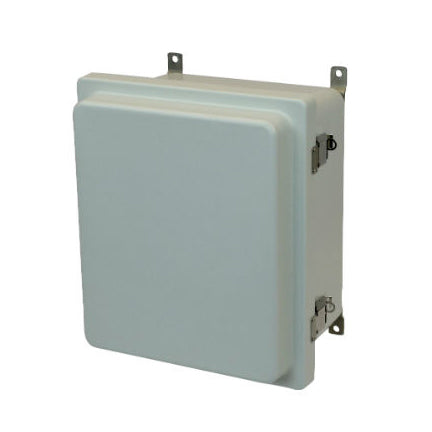

AM1648RL 16x14x8 NEMA 4X Fiberglass Enclosure w/ Raised Quick-Release Latch Hinged Cover

This box is resistant to UV exposure and NEMA 4x rating for indoor and outdoor use. It has a snap latch hinged cover. Able to protects electrical and electronic components from the most extreme weather conditions.

Additional Info

Size in Inches: 16 inch
Part Number: AM1648RL
Box Dimensions: 16.27" (H), 14.4" (W), 8" (D)
Cover Type: Opaque
Cover/Base Material: ULTRAGUARD Fiberglass reinforced polyester - compression molded SMC box and Cover
Latch Type: Quick-Release Latch
Gasket Material: Closed cell neoprene cord gasket
Back Panel Insert Material: Brass
Mounting Feet Material: Stainless Steel
Weight (lbs.): 14
UPC Code: 85339916758
Standards: UL 508A, UL 50 and UL 50E Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. E120175 CSA-C22.2 No. 14 and CSA C22.2 No. 94 Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. 89590
Compliance: EN / IEC 60204-1 and 60529 Type IP66, RoHS directive
Optional Accessories: Painted Steel Back Panel: P164 Aluminum Back Panel: PA164 Fiberglass Back Panel: PF164 Galvanized Back Panel: PG164 Aluminum HFP: HFP164 Key-lock Kit: AMKEYLOCKRC Key-lock Kit With HFP: AMKEYLOCKRCHFP Pole Mount Kit: AMPOLEMNT14
Fastener Material: 300 Series stainless steel external hardware (hinges, latches and fasteners)

PVC Fittings Online  |  SKU: AM1648RL

AM1648RL 16x14x8 NEMA 4X Fiberglass Enclosure w/ Raised Quick-Release Latch Hinged Cover

AM-R Series JIC Size Junction Box with Snap Latch Hinged Cover - Part: AM1648RL

Allied Moulded enclosures have a 4-6 week lead time.

$246.13
Shipping calculated at checkout.

This is a Furniture Grade item - NOT MEANT FOR PLUMBING.
AM-R Series JIC Size Junction Box with Snap Latch Hinged Cover - Part: AM1648RL

Allied Moulded enclosures have a 4-6 week lead time.

Bulk orders? Get a quote over $1000

Description
This box is resistant to UV exposure and NEMA 4x rating for indoor and outdoor use. It has a snap latch hinged cover. Able to protects electrical and electronic components from the most extreme weather conditions.

Additional Info
Size in Inches: 16 inch
Part Number: AM1648RL
Box Dimensions: 16.27" (H), 14.4" (W), 8" (D)
Cover Type: Opaque
Cover/Base Material: ULTRAGUARD Fiberglass reinforced polyester - compression molded SMC box and Cover
Latch Type: Quick-Release Latch
Gasket Material: Closed cell neoprene cord gasket
Back Panel Insert Material: Brass
Mounting Feet Material: Stainless Steel
Weight (lbs.): 14
UPC Code: 85339916758
Standards: UL 508A, UL 50 and UL 50E Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. E120175 CSA-C22.2 No. 14 and CSA C22.2 No. 94 Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. 89590
Compliance: EN / IEC 60204-1 and 60529 Type IP66, RoHS directive
Optional Accessories: Painted Steel Back Panel: P164 Aluminum Back Panel: PA164 Fiberglass Back Panel: PF164 Galvanized Back Panel: PG164 Aluminum HFP: HFP164 Key-lock Kit: AMKEYLOCKRC Key-lock Kit With HFP: AMKEYLOCKRCHFP Pole Mount Kit: AMPOLEMNT14
Fastener Material: 300 Series stainless steel external hardware (hinges, latches and fasteners)
