PVC Fittings Online  |  SKU: AM1648RLW

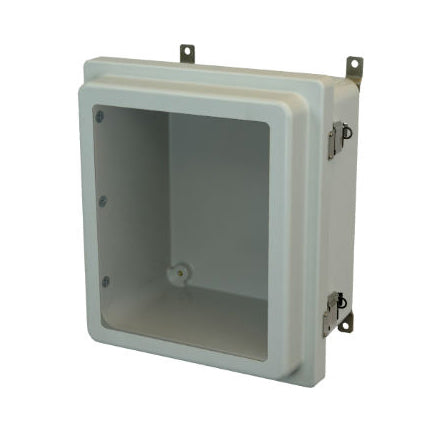

AM1648RLW 16x14x8 NEMA 4X Fiberglass Enclosure w/ Raised Quick-Release Latch Hinged Cover Window

AM-R Series JIC Size Junction Box with Snap Latch Hinged Cover and Window - Part: AM1648RLW

Allied Moulded enclosures have a 4-6 week lead time.

$392.72
Shipping calculated at checkout.

This is a Furniture Grade item - NOT MEANT FOR PLUMBING.

Actual part may differ slightly from image shown.

Description
Allied's products often compared to steel are light weight with lower cost to install are durable indoor and outdoors. This box will protect against salt, water, chemicals and more. Built tough to enclose and protect electrical and electronic components.

Additional Info
Part Number: AM1648RLW
Box Dimensions: 16.27" (H), 14.4" (W), 8" (D)
Cover Type: Window
Cover/Base Material: ULTRAGUARD Fiberglass reinforced polyester - compression molded SMC box and cover with bonded clear polycarbonate window
Latch Type: Quick-Release Latch
Gasket Material: Closed cell neoprene cord gasket
Back Panel Insert Material: Brass
Mounting Feet Material: Stainless Steel
Weight (lbs.): 14
UPC Code: 85339916765
Standards: UL 508A, UL 50 and UL 50E Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. E120175 CSA-C22.2 No. 14 and CSA C22.2 No. 94 Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. 89590
Compliance: EN / IEC 60204-1 and 60529 Type IP66, RoHS directive
Optional Accessories: Painted Steel Back Panel: P164 Aluminum Back Panel: PA164 Fiberglass Back Panel: PF164 Galvanized Back Panel: PG164 Aluminum HFP: HFP164 Key-lock Kit: AMKEYLOCKRC Key-lock Kit With HFP: AMKEYLOCKRCHFP Pole Mount Kit: AMPOLEMNT14
Fastener Material: 300 Series stainless steel external hardware (hinges, latches and fasteners)
