PVC Fittings Online  |  SKU: AM1648RW

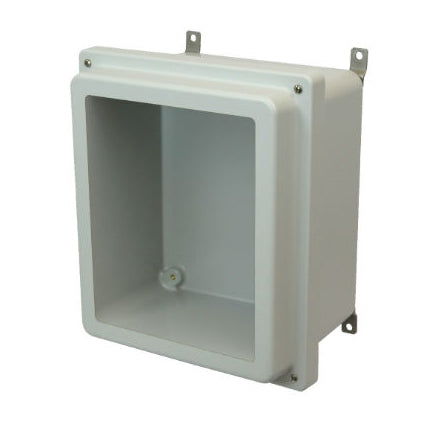

AM1648RW 16x14x8 NEMA 4X Fiberglass Enclosure w/ Raised Lift-Off Screw Cover Window

AM-R Series JIC Size Junction Box with Lift-Off Screw Cover and Window - Part: AM1648RW

Allied Moulded enclosures have a 4-6 week lead time.

$359.99
Shipping calculated at checkout.

This is a Furniture Grade item - NOT MEANT FOR PLUMBING.

Actual part may differ slightly from image shown.

Description
With a low installation cost Allied makes these boxes affordable and durable for long-term use. Grey in color these enclosures vary in size and shape. You can count on these boxes to withstand most all extreme weather.

Additional Info
Part Number: AM1648RW
Box Dimensions: 16.27" (H), 14.4" (W), 8" (D)
Cover Type: Window
Cover/Base Material: ULTRAGUARD Fiberglass reinforced polyester - compression molded SMC box and cover with bonded clear polycarbonate window
Latch Type: Screw Cover
Gasket Material: Closed cell neoprene cord gasket
Back Panel Insert Material: Brass
Mounting Feet Material: Stainless Steel
Weight (lbs.): 14
UPC Code: 85339916857
Standards: UL 508A, UL 50 and UL 50E Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. E120175CSA-C22.2 No. 14 and CSA C22.2 No. 94 Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. 89590
Compliance: EN / IEC 60204-1 and 60529 Type IP66, RoHS directive
Optional Accessories: Painted Steel Back Panel: P164 Aluminum Back Panel: PA164 Fiberglass Back Panel: PF164 Galvanized Back Panel: PG164 Aluminum HFP: HFP164 Keylock Kit: AMKEYLOCKRCKeylock Kit With HFP: AMKEYLOCKRCHFPPole Mount Kit: AMPOLEMNT14
Fastener Material: 300 Series stainless steel external hardware (hinges, latches and fasteners)
