PVC Fittings Online | SKU: AM1648T

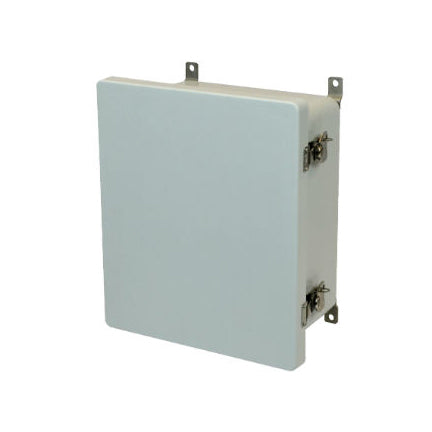

AM1648T 16x14x8 NEMA 4X Fiberglass Enclosure w/ Twist Latch Hinged Cover

Name: AM1648T 16x14x8 NEMA 4X Fiberglass Enclosure w/ Twist Latch Hinged Cover
Brand: PVC Fittings Online
SKU: AM1648T
Price: 231.57 USD
Availability: InStock

AM Series JIC Size Junction Box with Twist Latch Hinged Cover - Part: AM1648T

Allied Moulded enclosures have a 4-6 week lead time.

$231.57

Shipping calculated at checkout.

This is a Furniture Grade item - NOT MEANT FOR PLUMBING.

Actual part may differ slightly from image shown.

Description

Ultraguard fiberglass electrical box is durable for indoor and outdoor use. This box is also UV resistant and easily mountable. This enclosure is great for high temperatures and corrosive applications.

Additional Info

Part Number: AM1648T

Box Dimensions: 16.27" (H), 14.4" (W), 8" (D)

Cover Type: Opaque

Cover/Base Material: ULTRAGUARD Fiberglass reinforced polyester - compression molded SMC box and Cover

Latch Type: Twist Latch

Gasket Material: Closed cell neoprene cord gasket

Back Panel Insert Material: Brass

Mounting Feet Material: Stainless Steel

Weight (lbs.): 13

UPC Code: 85339916505

Standards: UL 508A, UL 50 and UL 50E Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. E120175 CSA-C22.2 No. 14 and CSA C22.2 No. 94 Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. 89590

Compliance: EN / IEC 60204-1 and 60529 Type IP66, RoHS directive

Optional Accessories: Painted Steel Back Panel: P164 Aluminum Back Panel: PA164 Fiberglass Back Panel: PF164 Galvanized Back Panel: PG164 Keylock Kit: AMKEYLOCKFC Pole Mount Kit: AMPOLEMNT14

Fastener Material: 300 Series stainless steel external hardware (hinges, latches and fasteners)
