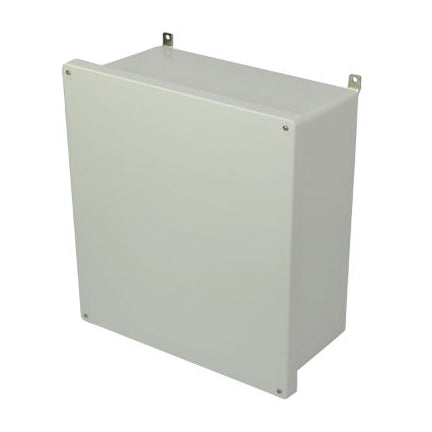

AM1868 18x16x8 NEMA 4X Fiberglass Enclosure w/ Lift-Off Screw Cover
The fiberglass reinforced polyester these boxes are made with is durable and made for long-term use. They can withstand extreme weather conditions and temperatures. Made for both indoor and outdoor use.
Additional Info
Size in Inches: 18 inch
Part Number: AM1868
Box Dimensions: 18.4" (H), 16.4" (W), 8.01" (D)
Cover Type: Opaque
Cover/Base Material: ULTRAGUARD Fiberglass reinforced polyester - compression molded SMC box and Cover
Latch Type: Screw Cover
Gasket Material: Closed cell neoprene cord gasket
Back Panel Insert Material: Brass
Mounting Feet Material: Stainless Steel
Weight (lbs.): 17
UPC Code: 85339918684
Standards: UL 508A, UL 50 and UL 50E Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. E120175CSA-C22.2 No. 14 and CSA C22.2 No. 94 Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. 89590
Compliance: EN / IEC 60204-1 and 60529 Type IP66, RoHS directive
Optional Accessories: Painted Steel Back Panel: P186 Aluminum Back Panel: PA186 Fiberglass Back Panel: PF186 Galvanized Back Panel: PG186 Keylock Kit: AMKEYLOCKFCPole Mount Kit: AMPOLEMNT16
Fastener Material: 300 Series stainless steel external hardware (hinges, latches and fasteners)
PVC Fittings Online | SKU:
AM1868
AM1868 18x16x8 NEMA 4X Fiberglass Enclosure w/ Lift-Off Screw Cover
AM Series JIC Size Junction Box with Lift-Off Screw Cover - Part: AM1868
Allied Moulded enclosures have a 4-6 week lead time.
$280.80
Unit price
/
Unavailable
Shipping calculated at checkout.
AM1868 18x16x8 NEMA 4X Fiberglass Enclosure w/ Lift-Off Screw Cover is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
AM Series JIC Size Junction Box with Lift-Off Screw Cover - Part: AM1868
Allied Moulded enclosures have a 4-6 week lead time.
Description
Description
The fiberglass reinforced polyester these boxes are made with is durable and made for long-term use. They can withstand extreme weather conditions and temperatures. Made for both indoor and outdoor use.
Additional Info
Additional Info
Size in Inches: 18 inch
Part Number: AM1868
Box Dimensions: 18.4" (H), 16.4" (W), 8.01" (D)
Cover Type: Opaque
Cover/Base Material: ULTRAGUARD Fiberglass reinforced polyester - compression molded SMC box and Cover
Latch Type: Screw Cover
Gasket Material: Closed cell neoprene cord gasket
Back Panel Insert Material: Brass
Mounting Feet Material: Stainless Steel
Weight (lbs.): 17
UPC Code: 85339918684
Standards: UL 508A, UL 50 and UL 50E Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. E120175CSA-C22.2 No. 14 and CSA C22.2 No. 94 Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. 89590
Compliance: EN / IEC 60204-1 and 60529 Type IP66, RoHS directive
Optional Accessories: Painted Steel Back Panel: P186 Aluminum Back Panel: PA186 Fiberglass Back Panel: PF186 Galvanized Back Panel: PG186 Keylock Kit: AMKEYLOCKFCPole Mount Kit: AMPOLEMNT16
Fastener Material: 300 Series stainless steel external hardware (hinges, latches and fasteners)
