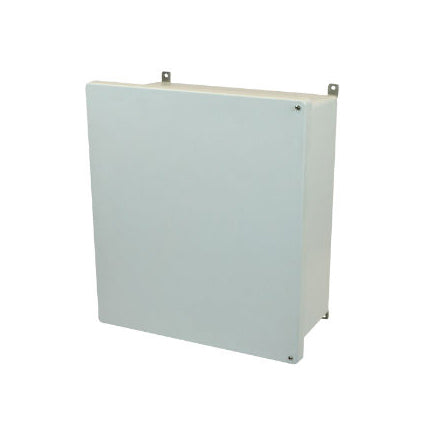

AM1868H 18x16x8 NEMA 4X Fiberglass Enclosure w/ Hinged Screw Cover

Name: AM1868H 18x16x8 NEMA 4X Fiberglass Enclosure w/ Hinged Screw Cover
Brand: PVC Fittings Online
SKU: AM1868H
Price: 283.47 USD
Availability: InStock

AM Series JIC Size Junction Box with Hinged Screw Cover - Part: AM1868H

Allied Moulded enclosures have a 4-6 week lead time.

$283.47

Shipping calculated at checkout.

This is a Furniture Grade item - NOT MEANT FOR PLUMBING.

Actual part may differ slightly from image shown.

Description

Like all Allied enclosures this model is made for long-term use both indoors and outdoors. It is especially well suited for extreme temperature and corrosive environments Also, easily mountable to a pole, wall or machine.

Additional Info

Part Number: AM1868H

Box Dimensions: 18.4" (H), 16.4" (W), 8.01" (D)

Cover Type: Opaque

Cover/Base Material: ULTRAGUARD Fiberglass reinforced polyester - compression molded SMC box and Cover

Latch Type: Screw Cover

Gasket Material: Closed cell neoprene cord gasket

Back Panel Insert Material: Brass

Mounting Feet Material: Stainless Steel

Weight (lbs.): 17

UPC Code: 85339918691

Standards: UL 508A, UL 50 and UL 50E Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. E120175CSA-C22.2 No. 14 and CSA C22.2 No. 94 Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. 89590

Compliance: EN / IEC 60204-1 and 60529 Type IP66, RoHS directive

Optional Accessories: Painted Steel Back Panel: P186 Aluminum Back Panel: PA186 Fiberglass Back Panel: PF186 Galvanized Back Panel: PG186 Keylock Kit: AMKEYLOCKFCPole Mount Kit: AMPOLEMNT16

Fastener Material: 300 Series stainless steel external hardware (hinges, latches and fasteners)
