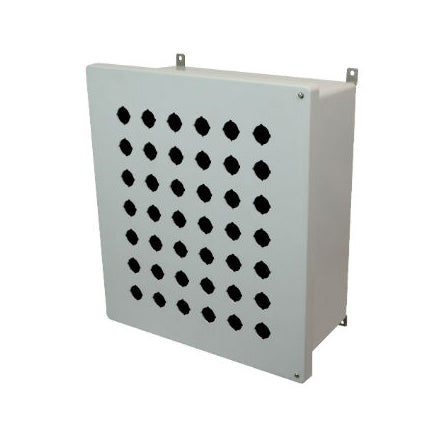

AM1868HP42 18x16x8 NEMA 4X Fiberglass Enclosure w/ Hinged Screw Cover 42 PB Cutouts 30.5MM
Allied has spent years coming up with the best fiberglass suited for these enclosures allowing this AM Series Pushbutton Enclosure with Multi-Hole Hinged Screw Cover protects against rain, sleet, snow, dirt, windblown dust, hose-directed water and corrosion. Great for indoor and outdoor use and is extremely easily mountable.
Additional Info
Size in Inches: 18 inch
Part Number: AM1868HP42
Box Dimensions: 18.4" (H), 16.4" (W), 8.01" (D)
Cover Type: Pushbutton
Cover/Base Material: ULTRAGUARD Fiberglass reinforced polyester - compression molded SMC box and Cover
Latch Type: Screw Cover
Gasket Material: Closed cell neoprene cord gasket
Back Panel Insert Material: Brass
Mounting Feet Material: Stainless Steel
Weight (lbs.): 17
UPC Code: 85339918790
Standards: UL 508A, UL 50 and UL 50E Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. E120175CSA-C22.2 No. 14 and CSA C22.2 No. 94 Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. 89590
Compliance: EN / IEC 60204-1 and 60529 Type IP66, RoHS directive
Optional Accessories: Hole Plugs, Pole Mount Kit, Back Panels
Fastener Material: 300 Series stainless steel external hardware (hinges, latches and fasteners)
PVC Fittings Online | SKU:
AM1868HP42
AM1868HP42 18x16x8 NEMA 4X Fiberglass Enclosure w/ Hinged Screw Cover 42 PB Cutouts 30.5MM
AM Series Pushbutton Enclosure with Multi-Hole Hinged Screw Cover - Part: AM1868HP42
Allied Moulded enclosures have a 4-6 week lead time.
$364.01
Unit price
/
Unavailable
Shipping calculated at checkout.
AM1868HP42 18x16x8 NEMA 4X Fiberglass Enclosure w/ Hinged Screw Cover 42 PB Cutouts 30.5MM is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
AM Series Pushbutton Enclosure with Multi-Hole Hinged Screw Cover - Part: AM1868HP42
Allied Moulded enclosures have a 4-6 week lead time.
Description
Description
Allied has spent years coming up with the best fiberglass suited for these enclosures allowing this AM Series Pushbutton Enclosure with Multi-Hole Hinged Screw Cover protects against rain, sleet, snow, dirt, windblown dust, hose-directed water and corrosion. Great for indoor and outdoor use and is extremely easily mountable.
Additional Info
Additional Info
Size in Inches: 18 inch
Part Number: AM1868HP42
Box Dimensions: 18.4" (H), 16.4" (W), 8.01" (D)
Cover Type: Pushbutton
Cover/Base Material: ULTRAGUARD Fiberglass reinforced polyester - compression molded SMC box and Cover
Latch Type: Screw Cover
Gasket Material: Closed cell neoprene cord gasket
Back Panel Insert Material: Brass
Mounting Feet Material: Stainless Steel
Weight (lbs.): 17
UPC Code: 85339918790
Standards: UL 508A, UL 50 and UL 50E Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. E120175CSA-C22.2 No. 14 and CSA C22.2 No. 94 Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. 89590
Compliance: EN / IEC 60204-1 and 60529 Type IP66, RoHS directive
Optional Accessories: Hole Plugs, Pole Mount Kit, Back Panels
Fastener Material: 300 Series stainless steel external hardware (hinges, latches and fasteners)
