PVC Fittings Online  |  SKU: AM1868RHW

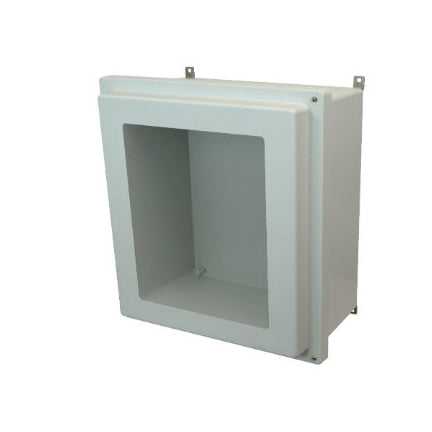

AM1868RHW 18x16x8 NEMA 4X Fiberglass Enclosure w/ Raised Hinged Screw Cover Window

AM-R Series JIC Size Junction Box with Hinged Screw Cover and Window - Part: AM1868RHW

Allied Moulded enclosures have a 4-6 week lead time.

$439.39
Shipping calculated at checkout.

This is a Furniture Grade item - NOT MEANT FOR PLUMBING.

Actual part may differ slightly from image shown.

Description
This Allied enclosure features a hinged 2-screw window cover to protect against wind, rain,sleet, snow, dirt and corrosion. It is made to withstand the harshest weather conditions. These boxes are durable for long-term use indoors and outdoors.

Additional Info
Part Number: AM1868RHW
Box Dimensions: 18.4" (H), 16.4" (W), 8.01" (D)
Cover Type: Window
Cover/Base Material: ULTRAGUARD Fiberglass reinforced polyester - compression molded SMC box and cover with bonded clear polycarbonate window
Latch Type: Screw Cover
Gasket Material: Closed cell neoprene cord gasket
Back Panel Insert Material: Brass
Mounting Feet Material: Stainless Steel
Weight (lbs.): 18
UPC Code: 85339919032
Standards: UL 508A, UL 50 and UL 50E Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. E120175CSA-C22.2 No. 14 and CSA C22.2 No. 94 Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. 89590
Compliance: EN / IEC 60204-1 and 60529 Type IP66, RoHS directive
Optional Accessories: Painted Steel Back Panel: P186 Aluminum Back Panel: PA186 Fiberglass Back Panel: PF186 Galvanized Back Panel: PG186 Aluminum HFP: HFP186 Keylock Kit: AMKEYLOCKRCKeylock Kit With HFP: AMKEYLOCKRCHFPPole Mount Kit: AMPOLEMNT16
Fastener Material: 300 Series stainless steel external hardware (hinges, latches and fasteners)
