PVC Fittings Online  |  SKU: AM1868RW

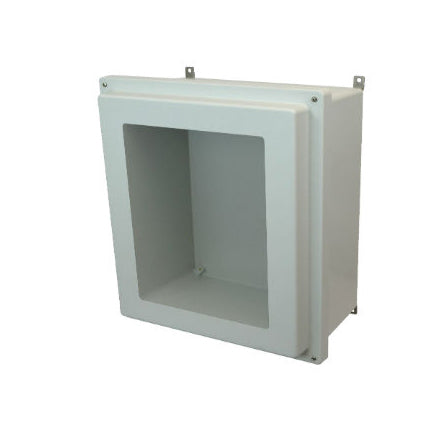

AM1868RW 18x16x8 NEMA 4X Fiberglass Enclosure w/ Raised Lift-Off Screw Cover Window

AM-R Series JIC Size Junction Box with Lift-Off Screw Cover and Window - Part: AM1868RW

Allied Moulded enclosures have a 4-6 week lead time.

$432.42
Shipping calculated at checkout.

This is a Furniture Grade item - NOT MEANT FOR PLUMBING.

Actual part may differ slightly from image shown.

Description
Allied's products have earned a reputation for strength, rigidity, and innovation. These enclosures are made great for both indoor and outdoors, and are also UV resistant. They are light weight and easy to handle, yet strong enough to hold up under extreme conditions.

Additional Info
Part Number: AM1868RW
Box Dimensions: 18.4" (H), 16.4" (W), 8.01" (D)
Cover Type: Window
Cover/Base Material: ULTRAGUARD Fiberglass reinforced polyester - compression molded SMC box and cover with bonded clear polycarbonate window
Latch Type: Screw Cover
Gasket Material: Closed cell neoprene cord gasket
Back Panel Insert Material: Brass
Mounting Feet Material: Stainless Steel
Weight (lbs.): 18
UPC Code: 85339919018
Standards: UL 508A, UL 50 and UL 50E Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. E120175CSA-C22.2 No. 14 and CSA C22.2 No. 94 Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. 89590
Compliance: EN / IEC 60204-1 and 60529 Type IP66, RoHS directive
Optional Accessories: Painted Steel Back Panel: P186 Aluminum Back Panel: PA186 Fiberglass Back Panel: PF186 Galvanized Back Panel: PG186 Aluminum HFP: HFP186 Keylock Kit: AMKEYLOCKRCKeylock Kit With HFP: AMKEYLOCKRCHFPPole Mount Kit: AMPOLEMNT16
Fastener Material: 300 Series stainless steel external hardware (hinges, latches and fasteners)
