PVC Fittings Online | SKU: AM1868W

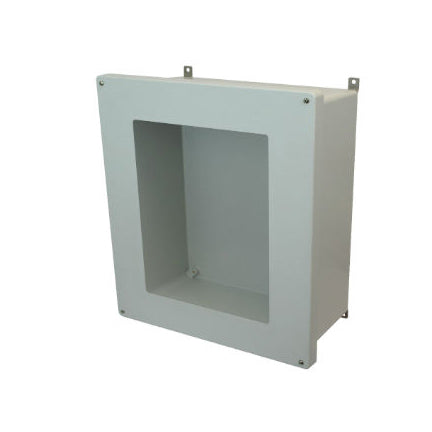

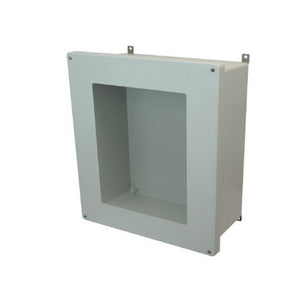

AM1868W 18x16x8 NEMA 4X Fiberglass Enclosure w/ Lift-Off Screw Cover Window

Name: AM1868W 18x16x8 NEMA 4X Fiberglass Enclosure w/ Lift-Off Screw Cover Window
Brand: PVC Fittings Online
SKU: AM1868W
Price: 413.63 USD
Availability: InStock

AM Series JIC Size Junction Box with Lift-Off Screw Cover and Window - Part: AM1868W

Allied Moulded enclosures have a 4-6 week lead time.

$413.63

Shipping calculated at checkout.

This is a Furniture Grade item - NOT MEANT FOR PLUMBING.

Actual part may differ slightly from image shown.

Description

Allied's fiberglass enclosures offer significant savings vs. stainless steel both in material and in shipping costs. They are easy to mount on a wall, pole or machine. They are especially well suited for extreme temperature and harsh environments

Additional Info

Part Number: AM1868W

Box Dimensions: 18.4" (H), 16.4" (W), 8.01" (D)

Cover Type: Window

Cover/Base Material: ULTRAGUARD Fiberglass reinforced polyester - compression molded SMC box and cover with bonded clear polycarbonate window

Latch Type: Screw Cover

Gasket Material: Closed cell neoprene cord gasket

Back Panel Insert Material: Brass

Mounting Feet Material: Stainless Steel

Weight (lbs.): 17

UPC Code: 85339918851

Standards: UL 508A, UL 50 and UL 50E Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. E120175CSA-C22.2 No. 14 and CSA C22.2 No. 94 Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. 89590

Compliance: EN / IEC 60204-1 and 60529 Type IP66, RoHS directive

Optional Accessories: Painted Steel Back Panel: P186 Aluminum Back Panel: PA186 Fiberglass Back Panel: PF186 Galvanized Back Panel: PG186 Keylock Kit: AMKEYLOCKFCPole Mount Kit: AMPOLEMNT16

Fastener Material: 300 Series stainless steel external hardware (hinges, latches and fasteners)
