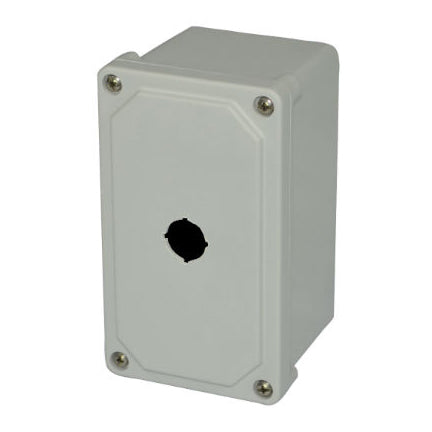

AM1PB22 7x4x3 NEMA 4X INLINE PB Fiberglass Enclosure w/ Lift-Off Screw Cover 1 PB Cutout 22.5MM

Name: AM1PB22 7x4x3 NEMA 4X INLINE PB Fiberglass Enclosure w/ Lift-Off Screw Cover 1 PB Cutout 22.5MM
Brand: PVC Fittings Online
SKU: AM1PB22
Price: 75.97 USD
Availability: InStock

AM Series Pushbutton Enclosure with Inline Lift=Off Screw Cover - Part: AM1PB22

Allied Moulded enclosures have a 4-6 week lead time.

$75.97

Shipping calculated at checkout.

This is a Furniture Grade item - NOT MEANT FOR PLUMBING.

Actual part may differ slightly from image shown.

Description

This enclosure is made specifically for electrical equipment, instruments, controls and components for indoor and outdoor use. Various shapes and sizes are made for these electrical boxes. They are easily customizable

Additional Info

Part Number: AM1PB22

Box Dimensions: 6.01" (H), 3.31" (W), 3.13" (D)

Cover Type: Pushbutton

Cover/Base Material: ULTRAGUARD Fiberglass reinforced polyester - compression molded SMC box and Cover

Latch Type: Screw Cover

Gasket Material: Closed cell neoprene cord gasket

Back Panel Insert Material: Brass

Mounting Feet Material: Stainless Steel

Weight (lbs.): 2

UPC Code: 85339910046

Standards: UL 508A, UL 50 and UL 50E Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. E120175CSA-C22.2 No. 14 and CSA C22.2 No. 94 Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. 89590

Compliance: EN / IEC 60204-1 and 60529 Type IP66, RoHS directive

Optional Accessories: Aluminum Back Panel: PA74 Fiberglass Back Panel: PF74

Fastener Material: 300 Series stainless steel external hardware (hinges, latches and fasteners)
