PVC Fittings Online | SKU: AM2068

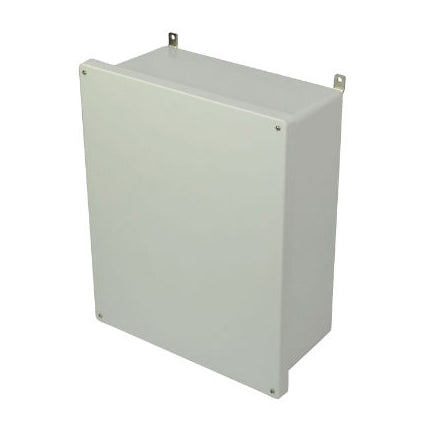

AM2068 20x16x8 NEMA 4X Fiberglass Enclosure w/ Lift-Off Screw Cover

Name: AM2068 20x16x8 NEMA 4X Fiberglass Enclosure w/ Lift-Off Screw Cover
Brand: PVC Fittings Online
SKU: AM2068
Price: 433.75 USD
Availability: InStock

AM Series JIC Size Junction Box with Lift-Off Screw Cover - Part: AM2068

Allied Moulded enclosures have a 4-6 week lead time.

$433.75

Shipping calculated at checkout.

This is a Furniture Grade item - NOT MEANT FOR PLUMBING.

Actual part may differ slightly from image shown.

Description

Allied's AM Series JIC Size Junction Box with Lift-Off Screw Cover is designed to insulate and protect controls and components in both indoor and outdoor applications. It protects from dirt, dust, oil and water. For use with industrial control equipment in ordinary locations.

Additional Info

Part Number: AM2068

Box Dimensions: 20" (H), 16" (W), 8.01" (D)

Cover Type: Opaque

Cover/Base Material: ULTRAGUARD Fiberglass reinforced polyester - compression molded SMC box and Cover

Latch Type: Screw Cover

Gasket Material: Closed cell neoprene cord gasket

Back Panel Insert Material: Brass

Mounting Feet Material: Stainless Steel

Weight (lbs.): 18

UPC Code: 85339920687

Standards: UL 508A, UL 50 and UL 50E Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. E120175CSA-C22.2 No. 14 and CSA C22.2 No. 94 Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. 89590

Compliance: EN / IEC 60204-1 and 60529 Type IP66, RoHS directive

Optional Accessories: Painted Steel Back Panel: P206 Aluminum Back Panel: PA206 Fiberglass Back Panel: PF206 Galvanized Back Panel: PG206 Keylock Kit: AMKEYLOCKFCPole Mount Kit: AMPOLEMNT16

Fastener Material: 300 Series stainless steel external hardware (hinges, latches and fasteners)
