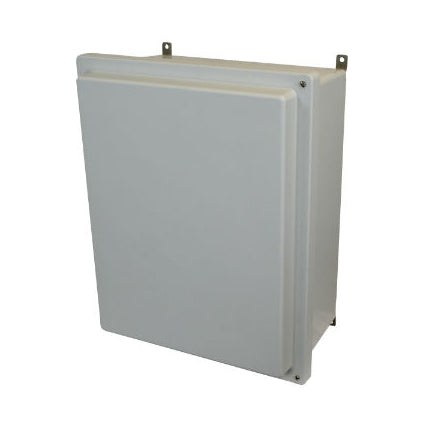

AM2068RH 20x16x8 NEMA 4X Fiberglass Enclosure w/ Raised Hinged Screw Cover
With Allied Moulded's electrical enclosures they are customizable from hole and cutouts, color matches, and the hinge installed on the short side. These boxes are non-corrosive and non-conductive. They are also light weight making them easier to mount.
Additional Info
Size in Inches: 20 inch
Part Number: AM2068RH
Box Dimensions: 20" (H), 16" (W), 8.01" (D)
Cover Type: Opaque
Cover/Base Material: ULTRAGUARD Fiberglass reinforced polyester - compression molded SMC box and Cover
Latch Type: Screw Cover
Gasket Material: Closed cell neoprene cord gasket
Back Panel Insert Material: Brass
Mounting Feet Material: Stainless Steel
Weight (lbs.): 20
UPC Code: 85339921035
Standards: UL 508A, UL 50 and UL 50E Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. E120175CSA-C22.2 No. 14 and CSA C22.2 No. 94 Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. 89590
Compliance: EN / IEC 60204-1 and 60529 Type IP66, RoHS directive
Optional Accessories: Back Panels, Hinged Front Panel, Hole Plugs, Vent Kits, and Pole Mount Kit
Fastener Material: 300 Series stainless steel external hardware (hinges, latches and fasteners)
PVC Fittings Online | SKU:
AM2068RH
AM2068RH 20x16x8 NEMA 4X Fiberglass Enclosure w/ Raised Hinged Screw Cover
AM-R Series JIC Size Junction Box with Hinged Screw Cover - Part: AM2068RH
Allied Moulded enclosures have a 4-6 week lead time.
$455.51
Unit price
/
Unavailable
Shipping calculated at checkout.
AM2068RH 20x16x8 NEMA 4X Fiberglass Enclosure w/ Raised Hinged Screw Cover is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
AM-R Series JIC Size Junction Box with Hinged Screw Cover - Part: AM2068RH
Allied Moulded enclosures have a 4-6 week lead time.
Description
Description
With Allied Moulded's electrical enclosures they are customizable from hole and cutouts, color matches, and the hinge installed on the short side. These boxes are non-corrosive and non-conductive. They are also light weight making them easier to mount.
Additional Info
Additional Info
Size in Inches: 20 inch
Part Number: AM2068RH
Box Dimensions: 20" (H), 16" (W), 8.01" (D)
Cover Type: Opaque
Cover/Base Material: ULTRAGUARD Fiberglass reinforced polyester - compression molded SMC box and Cover
Latch Type: Screw Cover
Gasket Material: Closed cell neoprene cord gasket
Back Panel Insert Material: Brass
Mounting Feet Material: Stainless Steel
Weight (lbs.): 20
UPC Code: 85339921035
Standards: UL 508A, UL 50 and UL 50E Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. E120175CSA-C22.2 No. 14 and CSA C22.2 No. 94 Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. 89590
Compliance: EN / IEC 60204-1 and 60529 Type IP66, RoHS directive
Optional Accessories: Back Panels, Hinged Front Panel, Hole Plugs, Vent Kits, and Pole Mount Kit
Fastener Material: 300 Series stainless steel external hardware (hinges, latches and fasteners)
