PVC Fittings Online  |  SKU: AM2068RHW

AM2068RHW 20x16x8 NEMA 4X Fiberglass Enclosure w/ Raised Hinged Screw Cover Window

AM-R Series JIC Size Junction Box with Hinged Screw Cover and Window - Part: AM2068RHW

Allied Moulded enclosures have a 4-6 week lead time.

$655.24
Shipping calculated at checkout.

This is a Furniture Grade item - NOT MEANT FOR PLUMBING.

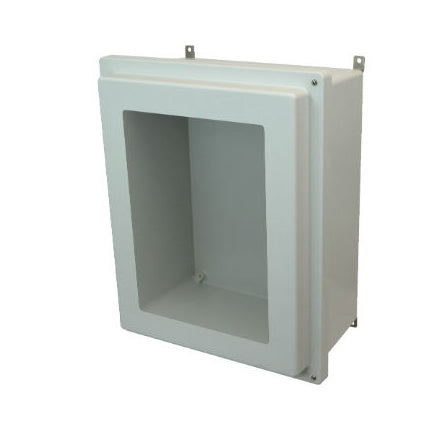

Actual part may differ slightly from image shown.

Description
Customizable polycarbonate viewing windows mean Allied's boxes are modifiable. These fiberglass enclosures have longer life cycles compared to steel. Made for both indoor and outdoor applications.

Additional Info
Part Number: AM2068RHW
Box Dimensions: 20" (H), 16" (W), 8.01" (D)
Cover Type: Window
Cover/Base Material: ULTRAGUARD Fiberglass reinforced polyester - compression molded SMC box and cover with bonded clear polycarbonate window
Latch Type: Screw Cover
Gasket Material: Closed cell neoprene cord gasket
Back Panel Insert Material: Brass
Mounting Feet Material: Stainless Steel
Weight (lbs.): 20
UPC Code: 85339921042
Standards: UL 508A, UL 50 and UL 50E Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. E120175CSA-C22.2 No. 14 and CSA C22.2 No. 94 Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. 89590
Compliance: EN / IEC 60204-1 and 60529 Type IP66, RoHS directive
Optional Accessories: Back Panels, Hinged Front Panel, Hole Plugs, Vent Kits, and Pole Mount Kit
Fastener Material: 300 Series stainless steel external hardware (hinges, latches and fasteners)
