PVC Fittings Online  |  SKU: AM2068RW

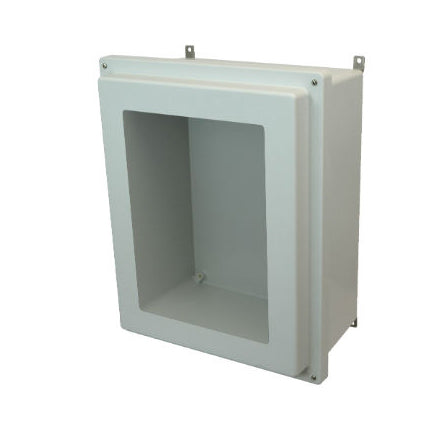

AM2068RW 20x16x8 NEMA 4X Fiberglass Enclosure w/ Raised Lift-Off Screw Cover Window

AM-R Series JIC Size Junction Box with Lift-Off Screw Cover and Window - Part: AM2068RW

Allied Moulded enclosures have a 4-6 week lead time.

$648.27
Shipping calculated at checkout.

This is a Furniture Grade item - NOT MEANT FOR PLUMBING.

Actual part may differ slightly from image shown.

Description
Allied Moulded's products have earned a reputation for strength, rigidity and innovation. These enclosures are formulated of reinforced fiberglass polyester. This model having a window to provide a viewing are for equipment and instruments.

Additional Info
Part Number: AM2068RW
Box Dimensions: 20" (H), 16" (W), 8.01" (D)
Cover Type: Window
Cover/Base Material: ULTRAGUARD Fiberglass reinforced polyester - compression molded SMC box and cover with bonded clear polycarbonate window
Latch Type: Screw Cover
Gasket Material: Closed cell neoprene cord gasket
Back Panel Insert Material: Brass
Mounting Feet Material: Stainless Steel
Weight (lbs.): 20
UPC Code: 85339921028
Standards: UL 508A, UL 50 and UL 50E Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. E120175CSA-C22.2 No. 14 and CSA C22.2 No. 94 Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. 89590
Compliance: EN / IEC 60204-1 and 60529 Type IP66, RoHS directive
Optional Accessories: Back Panels, Hinged Front Panel, Hole Plugs, Vent Kits, and Pole Mount Kit
Fastener Material: 300 Series stainless steel external hardware (hinges, latches and fasteners)
